Injection molding engineered for stable dimensions, clean cosmetics, and scalable output—supported by DFM, polymer selection, and inspection planning.
Typical Tolerance
±0.10–0.25 mm
Tooling Lead
2–6 Weeks
Program Scale
100 – 1M+ Pcs
PREMSA delivers plastic part production for teams that need predictable fit, stable dimensions, and consistent cosmetics. We build programs around the realities of molding: polymer shrink behavior, gate strategy, ejection, and tool design.
Our quoting stage includes molding-focused DFM—draft, wall uniformity, ribs/bosses, parting line, gating, and insert/overmold considerations. This reduces tooling rework and avoids surprises at first shot.
From early prototypes to long-running production programs, PREMSA focuses on repeatability with documented specifications, controlled process windows, and clear communication from sampling through ongoing production.
From CAD upload to stable production runs.
Plastic part production is the manufacturing of components made from thermoplastics and elastomers using repeatable processes designed for consistent output. For most end-use programs, injection molding is the primary method because it produces parts with stable geometry, good cosmetics, and low cost-per-part at scale.
Successful plastic production depends on more than a mold: polymer selection, shrink prediction, gate strategy, venting, cooling, and ejection all influence dimensional stability and surface quality. A strong DFM step aligns the part design with tooling and processing to reduce risk and achieve consistent results.
1. Part DFM & Requirements
We validate draft, wall thickness, ribs/bosses, parting line, shutoffs, and critical dimensions. Cosmetic zones, fit interfaces, and functional requirements are aligned upfront.
2. Polymer Selection
We confirm polymer family and grade (e.g., ABS, PC, PA, PBT, PP, TPE) based on mechanical loads, temperature, impact resistance, chemical exposure, and dimensional stability.
3. Tooling Strategy & Cavitation
We define tool type, steel class, cavitation strategy, and expected tool life based on volume, tolerances, and long-term production needs.
4. Tooling Design & Build
Tool design defines gating, venting, cooling, and ejection strategy. Tool construction and surface finishing establish cosmetic potential and process robustness.
5. First Shots & Sampling
Initial samples are molded and reviewed for dimensions, warpage, gate vestige, cosmetic appearance, and functional fit against requirements.
6. Process Window Definition
Processing parameters are adjusted to establish a stable operating window that balances dimensional control, cosmetics, and cycle time.
7. Inspection & Validation
Critical features are inspected per the agreed plan. First-article reports and validation steps are completed as required by the program.
8. Production & Ongoing Control
Approved programs move into controlled production with defined parameters, traceability options, packaging standards, and repeatable output.
Cost-Per-Part Must Drop at Scale
Injection molding is ideal when volume drives unit economics and you need repeatability beyond what additive manufacturing or machining can offer.
Consistent Cosmetics & Textures
When surface appearance matters—texture, gloss, and uniformity—molding provides a stable cosmetic baseline if tool finish and processing are controlled.
High Repeatability for Assemblies
Molding supports consistent snap fits, ribs, bosses, and assembly geometry when shrinkage and warpage are engineered from the start.
Integrated Functional Features
Choose molding to integrate clips, living hinges, ribs, and functional details that reduce secondary operations and assembly steps.
Overmolded or Inserted Components
Molding is well suited for parts requiring soft-touch overmolds, sealing features, or metal inserts captured reliably at production volumes.
Material Performance Drives Design
Select molding when polymer-specific properties—impact resistance, chemical compatibility, temperature stability, or flexibility—are critical to part performance.
A focused service stack for injection molding programs—built to support prototypes, production, and advanced molding features.Each program is aligned to DFM, polymer behavior, and cosmetic + dimensional targets.

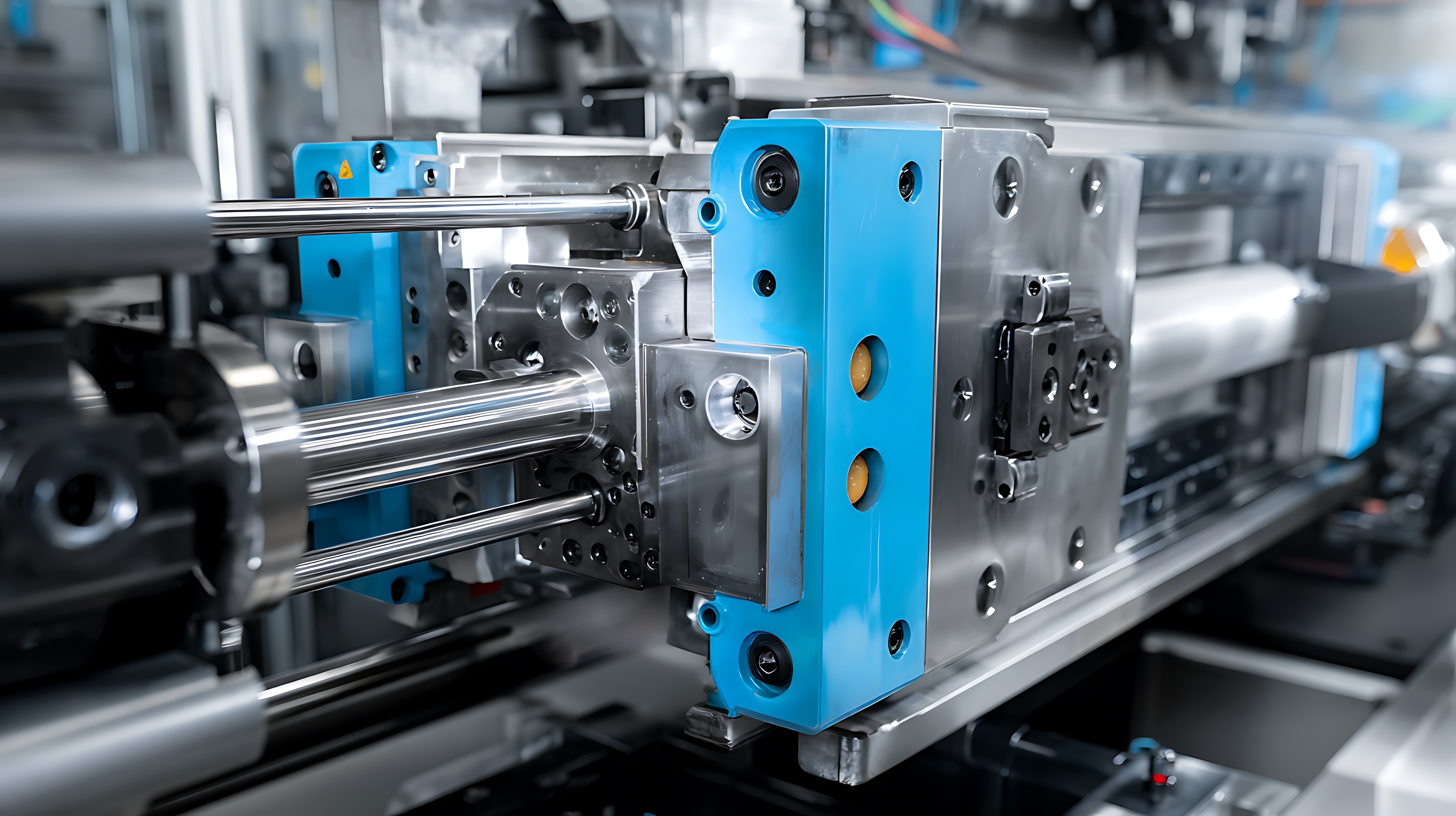

Production-ready injection molding for thermoplastics and elastomers with controlled processing, consistent cosmetics, and inspection planning. Optimized for stable dimensions, repeatability, and scalable output.
Program Focus
DFM → Tooling → Production
Prototype molding to validate geometry, fits, and basic cosmetics before committing to full production tooling. Designed to shorten iteration loops while keeping polymer behavior realistic.
Program Focus
DFM → Tooling → Production
Production programs with defined process windows, controlled parameters, and consistent inspection plans. Ideal for recurring releases, steady demand, and high-volume programs.
Program Focus
DFM → Tooling → Production
Overmolding combines substrates with elastomer layers for grip, sealing, vibration damping, and soft-touch surfaces. We design for adhesion strategy, shutoffs, and cosmetic edges.
Program Focus
DFM → Tooling → Production

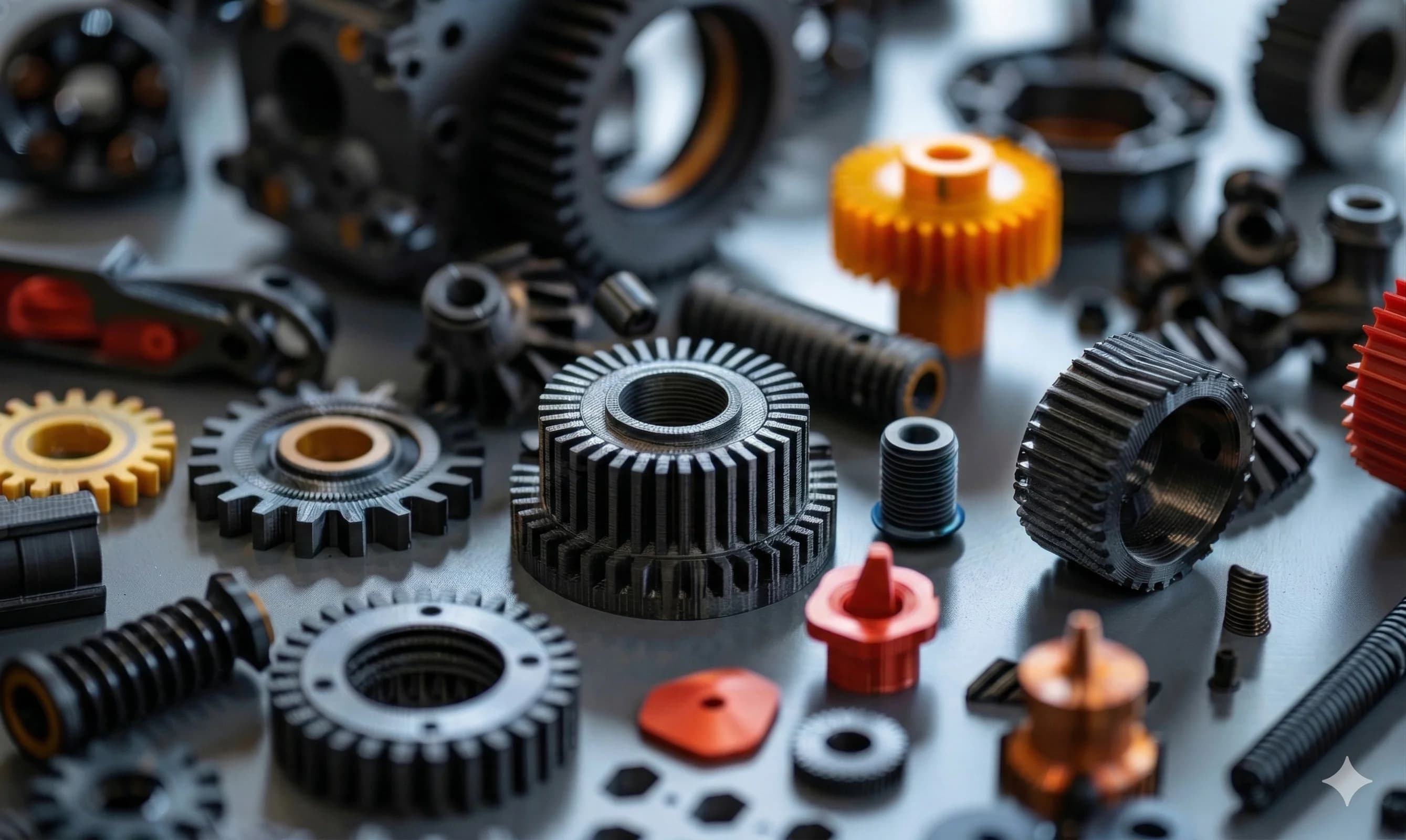

Insert molding captures metal or engineered inserts during molding for threads, strength, grounding, or assembly. We design for retention, thermal behavior, and repeatable placement.
Program Focus
DFM → Tooling → Production
Support for prototype through long-run production programs with sampling and controlled production ramps.
Prototype → High-Volume
Tool finish options from functional surfaces to controlled cosmetic finishes and textures when specified.
Texture / Gloss / Matte
Programs that require inserts, overmolded seals/grips, and feature consolidation for assembly-friendly designs.
Overmold + Inserts
Upload your CAD and we’ll run a molding-focused DFM review to flag risks and recommend next steps.
Injection molding tolerances depend on polymer family, part geometry, gate/cooling strategy, and tool construction. Clear requirements help align cost, risk, and inspection strategy.
| Category | Technical Description | Typical Notes |
|---|---|---|
| Dimensional Expectations | Typical molded parts are controlled by polymer shrink behavior and part geometry. Critical features require stable datums, balanced fill, and robust cooling. | Define critical-to-function dimensions; avoid over-specifying non-functional dimensions. |
| Shrinkage & Warpage Strategy | Shrink varies by polymer family and can change with fiber orientation, wall thickness variation, and cooling imbalance. Warpage risk rises with long flat spans and non-uniform walls. | Uniform wall thickness and symmetric geometry reduce warp; gating/cooling strategy matters. |
| Cosmetics & Surface Criteria | Cosmetics are affected by weld lines, flow fronts, sink, gate vestige, and ejection marks. Tool finish controls texture/gloss potential. | Specify cosmetic zones and acceptance criteria; allow non-cosmetic areas for functional marks. |
| Inspection & Reporting | Inspection ranges from sampling critical features to full dimensional reports depending on program needs and risk profile. | We can support first-article reports and ongoing sampling plans as required. |
| Process Validation (as needed) | Programs with higher risk may require documented process controls and validation approaches (e.g., sampling plans, capability checks) depending on customer requirements. | If you have a required format or standard, include it in the RFQ so we align early. |
Polymer selection drives strength, impact performance, temperature resistance, chemical compatibility, dimensional stability, and cosmetic quality. Share your environment, load case, regulatory needs, and end-use requirements so we can recommend the best material family and grade for your program.
Beyond molding, production programs often require controlled cosmetic finishes, trimming, assembly steps, hardware installation, traceability, and packaging support to deliver production-ready parts that integrate cleanly into downstream operations.
Molding DFM reduces tooling revisions and improves yield. These guidelines focus on shrink/warp control, ejection reliability, and cosmetic predictability.
| Design Feature | Technical Recommendation |
|---|---|
| Draft & Pull Direction | Add draft on vertical faces to release cleanly from the tool. More draft is recommended on textured surfaces. Align pull direction with critical cosmetic faces when possible. |
| Wall Thickness & Uniformity | Maintain uniform wall thickness to reduce sink and warpage. Avoid abrupt thickness transitions; use smooth blends and coring to keep mass consistent. |
| Ribs, Bosses & Stiffening | Use ribs for stiffness instead of thick walls. Bosses should be supported with ribs/gussets and designed to avoid sink on cosmetic faces. |
| Gates, Parting Line & Ejection | Gate location affects weld lines, flow fronts, and cosmetics. Keep parting line and ejector marks out of cosmetic zones or define acceptance criteria. |
| Undercuts, Slides & Lifters | Undercuts add tool complexity, cycle time, and risk. Minimize undercuts or design for simpler shutoffs when possible. |
| Designing for Overmolding & Inserts | For overmolds, define adhesion vs mechanical lock strategy and protect cosmetic edges. For inserts, design capture features and consider thermal expansion and placement repeatability. |

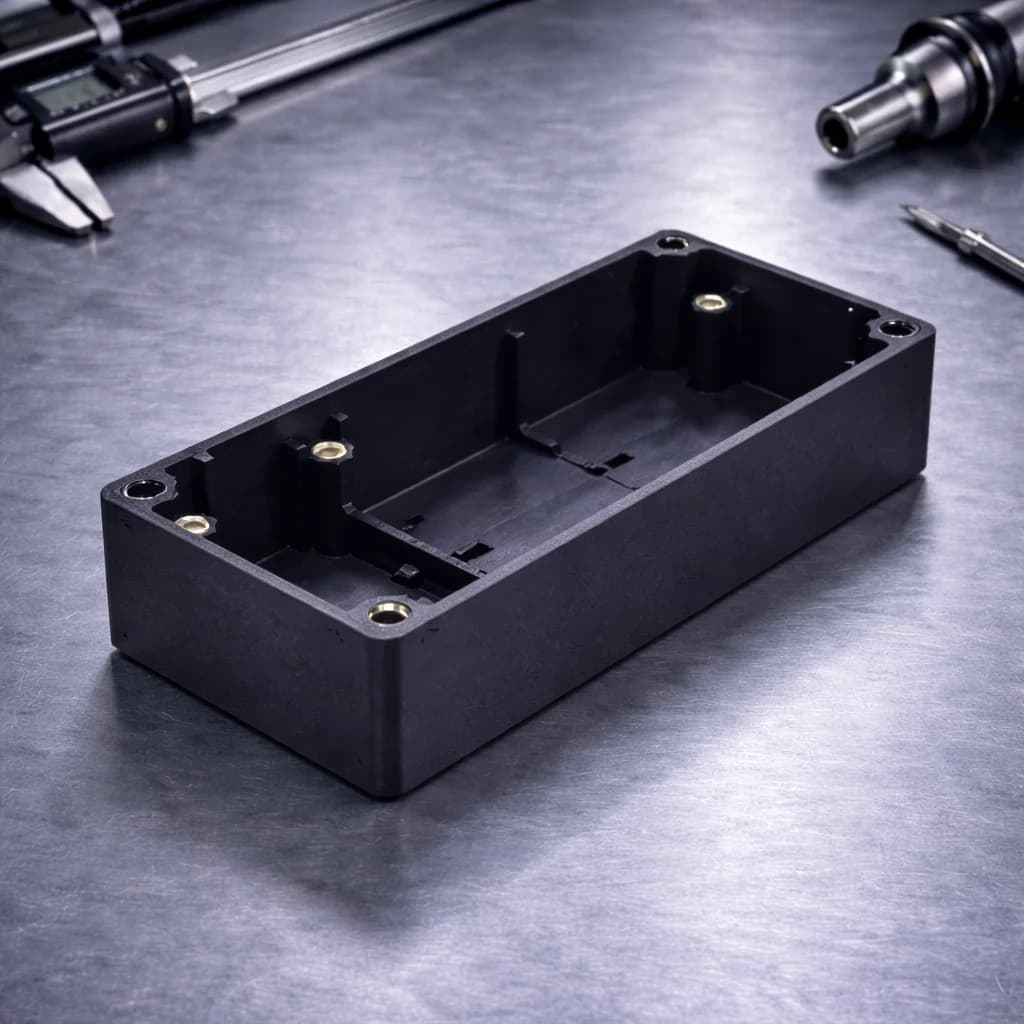

Injection molded housings for electronics, sensors, and controls—designed for stable assembly interfaces, cosmetic consistency, and repeatable fit.

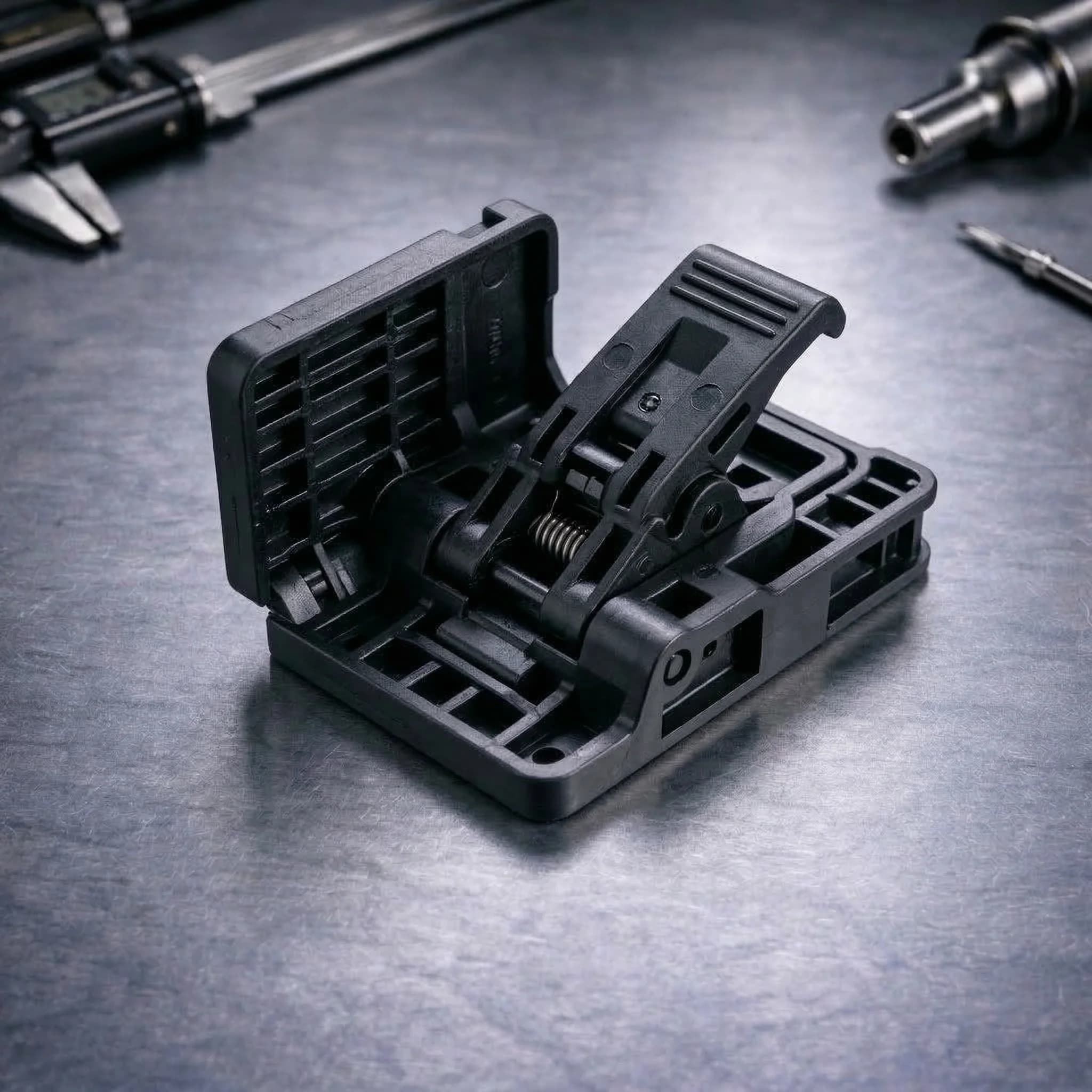

Functional parts with ribs, snaps, bosses, and feature consolidation that reduce assembly steps and improve repeatability.

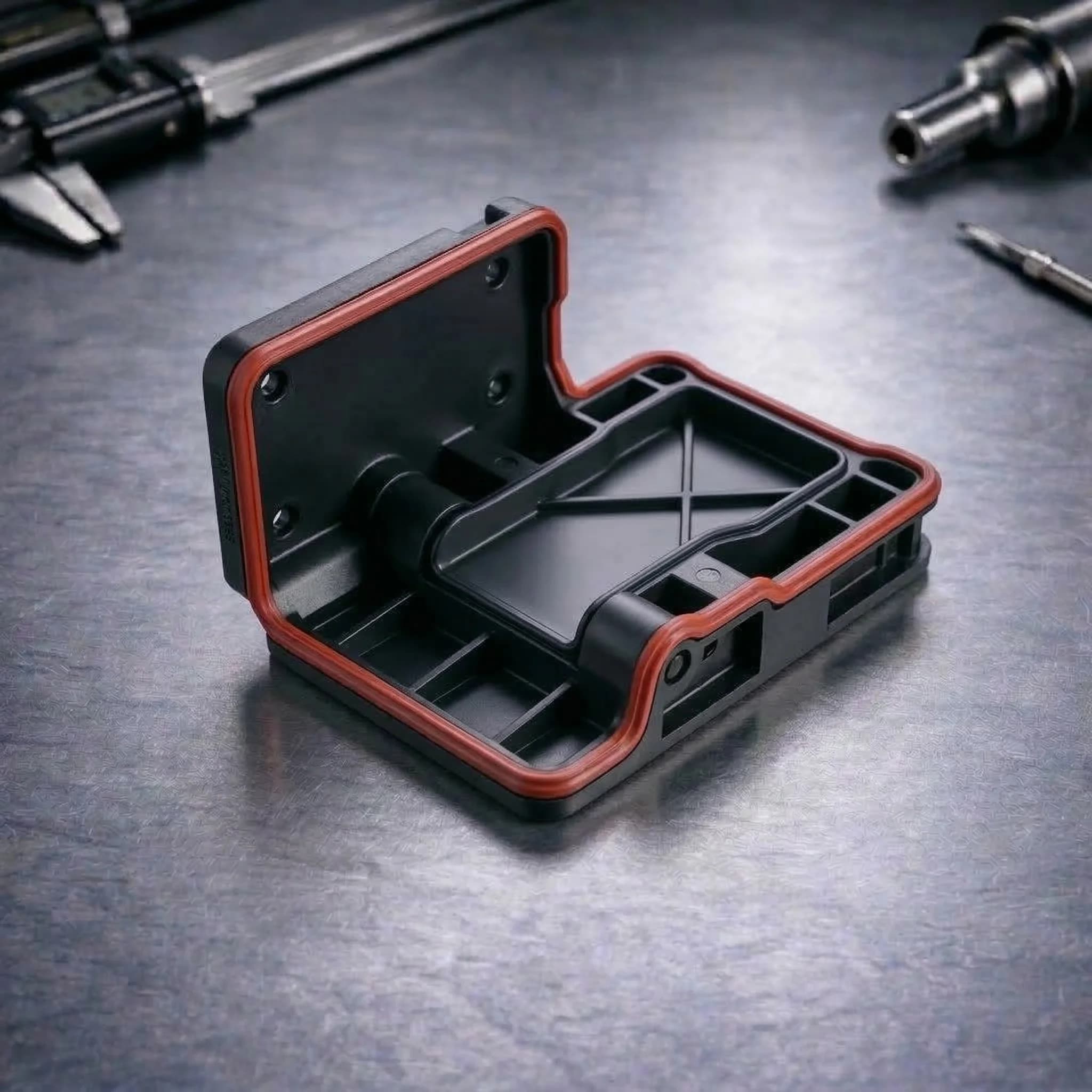

Overmolded grips and sealing surfaces that improve ergonomics, damp vibration, and support environmental sealing requirements.
Molded parts that support rugged environments, repeatable assembly, and stable long-run production for equipment and tooling ecosystems.
Housings, connector components, and assembly-ready molded parts for automation systems where repeatability and fit are critical.
Program control, materials alignment, and consistent cosmetics for device housings and components when requirements are provided in the RFQ.
Upload your CAD and requirements for a molding-focused DFM review and a clear path to prototype or production.
