Manufacturing services
CNC turning and milling · From 1 part
Contact tips, connectors, terminals, electrodes and electrical parts in C14500 copper, turned and milled from your file. Upload your CAD and order online, starting at a single part.

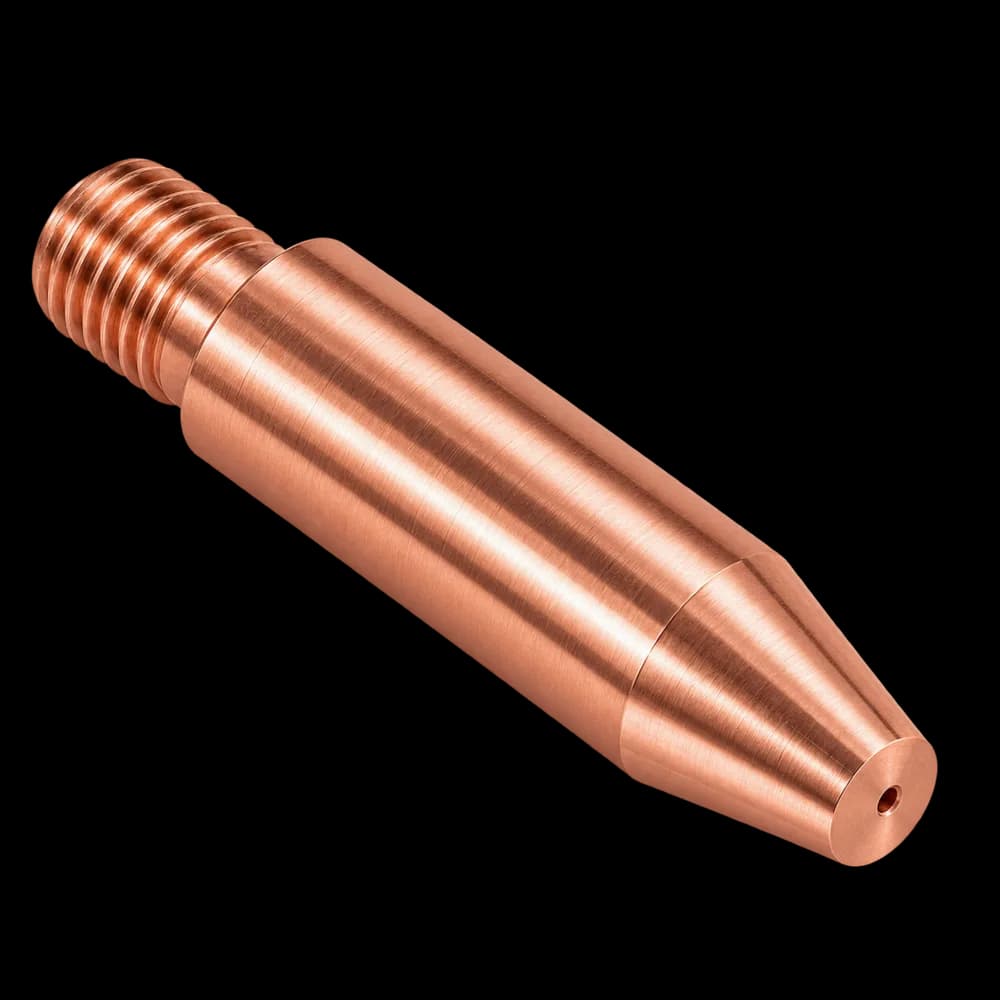

MIG contact tip
C14500 Copper · Ø8 × 36 mm · M6 thread · Ø1.2 through bore · Tapered tip · CNC turned
1 pc
$70.86 USD
per part
25 pcs
$10.21 USD
per part
-85.59%100 pcs
$8.18 USD
per part
-88.46%C14500 copper (UNS C14500, tellurium copper) is copper with 0.4–0.7% tellurium and a little phosphorus. The tellurium makes the chip break short, so it machines well, and it still keeps an electrical conductivity of about 93% IACS. That is why it is used for welding contact tips, connectors, terminals, electrodes and turned electrical parts. At PREMSA we CNC turn and mill it from your file, starting at a single part with an instant price.
C14500 tellurium copper properties: mechanical, physical, thermal and electrical data to choose the material for your machined part.
Material Type
Tellurium Copper (Free-Machining Copper)
Composition
99.4% Copper (min), 0.4–0.7% Tellurium, 0.004–0.012% Phosphorus
Primary Characteristics
Short chips and good machinability, electrical conductivity of about 93% IACS, phosphorus-deoxidized (no hydrogen embrittlement), non-magnetic
Tensile Strength (Ultimate)
30–50 ksi (207–345 MPa)
Tensile Strength (Yield)
10–45 ksi (69–310 MPa)
Elongation at Break
8–30%
Rockwell Hardness
40–90 HRF
Density
8.94 g/cm³ (0.323 lb/in³)
Elastic Modulus
17,000 ksi (117 GPa)
Thermal Conductivity
355 W/m·K (≈ 205 BTU/ft·hr·°F)
Coefficient of Thermal Expansion
17.6 µm/m·°C
Melting Point
1075 °C (1967 °F)
Electrical Conductivity
93% IACS (Standard)
Machinability
Very good (85%): short chips and a good finish; allows small holes and fine threads
Weldability
Excellent for soldering and brazing; fair for arc welding
Corrosion Resistance
Excellent in air and water; it darkens and forms a patina over time
Plating & Surface Finish
Takes silver, tin, gold and nickel plating very well
Common Forms
Round bar, hex bar and flat bar
Typical Applications
MIG welding contact tips, connectors and terminals, electrodes, motor and switchgear parts, nozzles
Standards
ASTM B124, B301
Rating across key engineering and manufacturing criteria.
Machinability
Electrical Conductivity
Thermal Conductivity
Dimensional Stability
Weldability/Brazing
Corrosion Resistance
Strength
Cost Efficiency
Upload your CAD file and get an instant price and delivery date. CNC turning and milling from one part to production.
We CNC turn and mill C14500 copper parts that have to carry current and have holes, threads or fine details.
MIG contact tips
Electrical connectors
Terminals and pins
Electrodes
Nozzles
Motor parts
Switchgear parts
Electrical bushings and sleeves
Custom C14500 parts
What people ask most about C14500 copper parts: what it is, what tellurium copper is, composition, uses, machining, conductivity, magnetism, corrosion, welding, equivalents, price and tolerances.
C14500 copper is chosen for parts that have to carry current and also have holes, threads or fine details: contact tips, connectors, terminals and electrodes.
At PREMSA Industries we machine C14500 with CNC turning and milling from your file, from a prototype to production.
C14500 is chosen when the part has to carry current and have small holes, threads or fine details.
If your drawing doesn’t specify tolerances, we machine to ISO 2768-m (medium). On dimensions you call out —fit diameters, bores, threads and lengths— we can hold ±0.025 mm (±0.001 in), and critical dimensions are checked in inspection.
C14500 is machined with CNC turning, CNC milling, drilling and tapping. The chip breaks short, so long small holes can be peck drilled and fine threads and details come out with a good finish, using sharp tooling and coolant.
Because it carries current and machines well, C14500 is used in many parts made with CNC machining.
C14500 is usually the right choice when the part has to carry current and has small holes, threads or fine details.
