Manufacturing services
CNC turning and milling · From 1 part
Spot welding electrodes and caps, seam welding wheels, contacts and electrical parts in C18200 copper, turned and milled from your file. Upload your CAD and order online, starting at a single part.

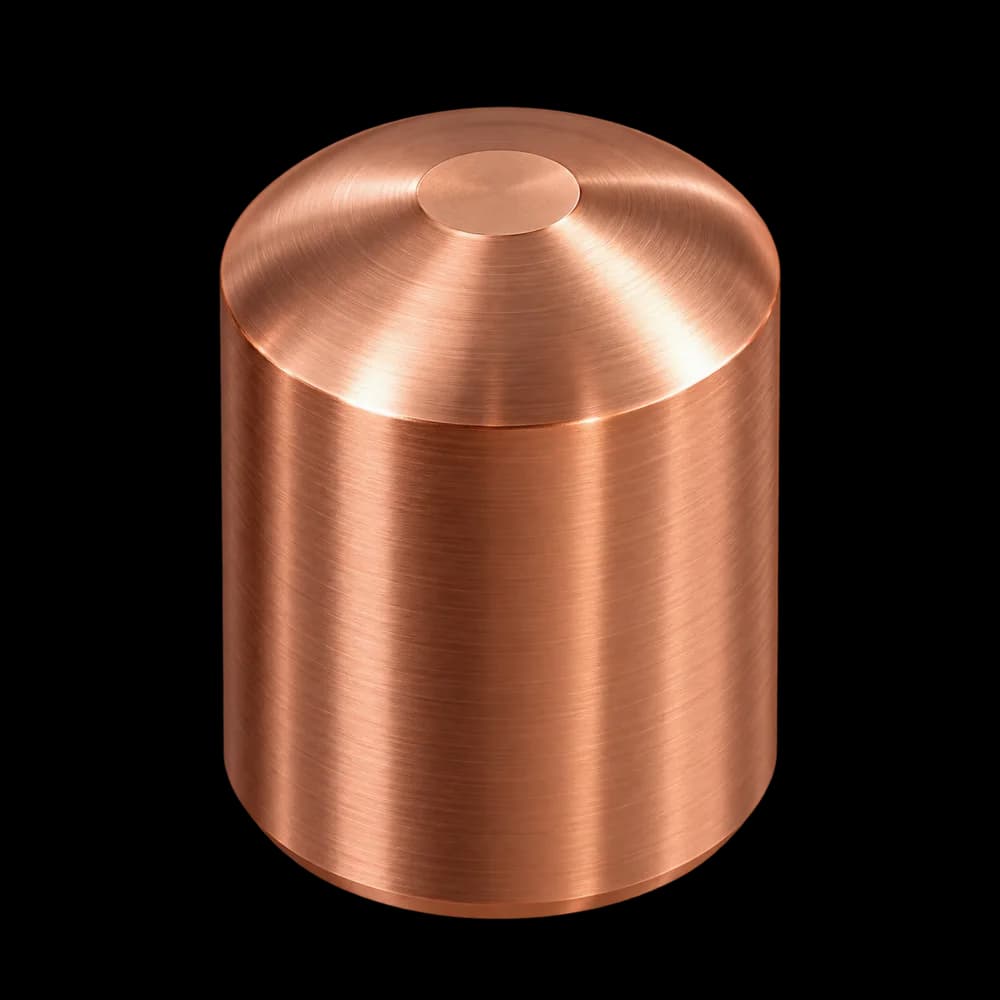

Spot welding electrode cap
C18200 Chromium Copper · Ø16 × 20 mm · Tapered tip with flat face · Internal tapered seat · CNC turned
1 pc
$70.48 USD
per part
25 pcs
$9.86 USD
per part
-86.01%100 pcs
$7.84 USD
per part
-88.88%C18200 copper (UNS C18200, chromium copper, RWMA Class 2) is copper with 0.6–1.2% chromium. Heat treated, it reaches 65–80 HRB hardness and keeps an electrical conductivity of about 80% IACS, and it doesn’t soften until about 500 °C. That is why it is used for spot welding electrodes and caps, seam welding wheels, contacts and parts that carry current under heat and pressure. At PREMSA we CNC turn and mill it from your file, starting at a single part with an instant price.
C18200 chromium copper properties: mechanical, physical, thermal and electrical data to choose the material for your machined part.
Material Type
Chromium Copper (RWMA Class 2 Equivalent)
Composition
98.5% Copper (min), 0.6–1.2% Chromium
Primary Characteristics
Heat treatable, electrical conductivity of about 80% IACS, doesn’t soften until about 500 °C, RWMA Class 2, non-magnetic
Tensile Strength (Ultimate)
45–70 ksi (310–482 MPa)
Tensile Strength (Yield)
35–60 ksi (241–414 MPa)
Elongation at Break
15–25%
Rockwell Hardness
65–80 HRB
Density
8.89 g/cm³ (0.321 lb/in³)
Elastic Modulus
18,700 ksi (129 GPa)
Thermal Conductivity
324 W/m·K (≈ 187 BTU/ft·hr·°F)
Coefficient of Thermal Expansion
17.6 µm/m·°C
Softening Temperature
500 °C (932 °F)
Electrical Conductivity
80% IACS (after heat treatment)
Machinability
Good (20%): heat treated it is harder and is machined with sharp carbide tooling and coolant; the chip comes out long
Weldability
Good for brazing and soldering; welding heat lowers the hardness gained in heat treatment
Corrosion Resistance
Good in air and water; it darkens and forms a patina over time
Plating & Surface Finish
Takes silver, tin and nickel plating
Common Forms
Round bar, flat bar and plate
Typical Applications
Spot welding electrodes and caps, seam welding wheels, electrode holders, contacts and switches, electrical parts that work under heat
Standards
ASTM B441, RWMA Class 2
Rating across key engineering and manufacturing criteria.
High-Temp Strength
Hardness
Electrical Conductivity
Thermal Conductivity
Machinability
Wear Resistance
Corrosion Resistance
Cost Efficiency
Upload your CAD file and get an instant price and delivery date. CNC turning and milling from one part to production.
We CNC turn and mill C18200 copper parts that have to carry current and withstand heat, pressure and wear.
Spot welding electrodes
Electrode caps
Seam welding wheels
Electrode holders
Resistance welding tips
Electrical contacts
Switch parts
Electrical parts that work under heat
Custom C18200 parts
What people ask most about C18200 copper parts: what it is, what chromium copper is, RWMA Class 2, composition, uses, machining, conductivity, temperature, magnetism, corrosion, welding, equivalents, price and tolerances.
C18200 copper is chosen for parts that have to carry current and also withstand heat, pressure and wear: spot welding electrodes, seam welding wheels and contacts.
At PREMSA Industries we machine C18200 with CNC turning and milling from your file, from a prototype to production.
C18200 is chosen when the part has to carry current and hold its shape under heat and pressure.
If your drawing doesn’t specify tolerances, we machine to ISO 2768-m (medium). On dimensions you call out —fit diameters, tapered seats, threads and lengths— we can hold ±0.025 mm (±0.001 in), and critical dimensions are checked in inspection.
C18200 is machined with CNC turning, CNC milling, drilling and tapping. It is usually machined already heat treated, with sharp carbide tooling, coolant and chip control, so contact faces and tapered seats come out with a good finish.
Because it carries current and handles heat, C18200 is used in many parts made with CNC machining.
C18200 is usually the right choice when the part has to carry current and work under heat, pressure or wear.
