Manufacturing services
CNC milling and turning · From 1 part
Clamps, flanges, fittings, brackets and parts for chemical, marine and medical equipment in titanium grade 2, milled and turned from your file. Upload your CAD and order online, starting at a single part.

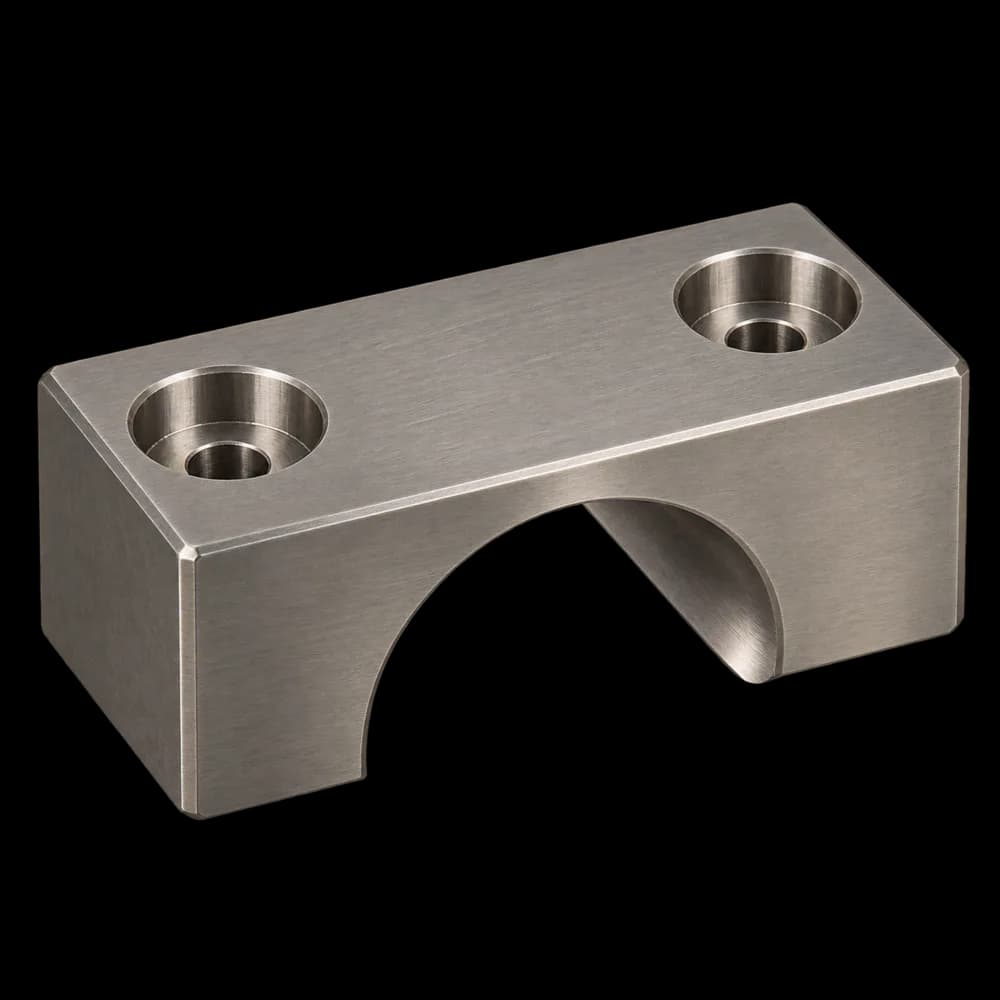

Tube clamp
Titanium Grade 2 · 60 × 30 × 18 mm · Ø25 half-round saddle · 2 Ø6.6 holes with Ø11 counterbore · CNC milled
1 pc
$106.65 USD
per part
25 pcs
$43.16 USD
per part
-59.53%100 pcs
$39.90 USD
per part
-62.59%Titanium grade 2 (UNS R50400, commercially pure titanium) is titanium over 99% pure. It weighs 4.51 g/cm³, takes 345 MPa in tension and resists corrosion from seawater, chlorides and many chemicals. That is why it is used for clamps, flanges, fittings, heat exchanger parts and chemical, marine and medical equipment. At PREMSA we CNC mill and turn it from your file, starting at a single part with an instant price.
Titanium grade 2 properties: mechanical, physical and thermal data to choose the material for your machined part.
Material Type
Commercially Pure Titanium (CP-Ti)
Primary Characteristics
Excellent corrosion resistance, lightweight (4.51 g/cm³), good weldability, ductile, biocompatible, non-magnetic
Tensile Strength (Ultimate)
50 ksi (345 MPa)
Tensile Strength (Yield)
40 ksi (275 MPa)
Elongation at Break
20%
Brinell Hardness
150–200 HB
Density
4.51 g/cm³ (0.163 lb/in³)
Elastic Modulus
16,000 ksi (110 GPa)
Poisson’s Ratio
0.34
Thermal Conductivity
16–18 W/m·K
Coefficient of Thermal Expansion
8.6 µm/m·°C
Melting Range
1660–1670 °C (3020–3040 °F)
Machinability
Fair (22%): it conducts little heat, so it is machined at low speed with sharp carbide tooling and plenty of coolant
Weldability
Excellent with inert gas shielding (TIG)
Formability
Good: it can be bent and cold formed
Corrosion Resistance
Excellent: resists seawater, chlorides and many chemicals
Heat Treatment
Not hardenable by heat treatment; only annealed for stress relief
Common Forms
Round bar, plate, sheet and tube
Typical Applications
Clamps and brackets, flanges and fittings, heat exchanger parts, chemical and marine equipment, medical parts
Material Composition
Titanium (Ti): 99%+, Oxygen (O): ≤0.25%, Iron (Fe): ≤0.30%, Carbon (C): ≤0.08%, Nitrogen (N): ≤0.03%, Hydrogen (H): ≤0.015%
ASTM Standard
ASTM B265 / B348 / B381 (depending on form)
Rating across key engineering and manufacturing criteria.
Strength
Weight
Machinability
Weldability
Formability
Corrosion Resistance
Thermal Resistance
Cost Efficiency
Upload your CAD file and get an instant price and delivery date. CNC milling and turning from one part to production.
We CNC mill and turn titanium grade 2 parts that have to resist corrosion and stay light.
Tube clamps and brackets
Flanges and fittings
Heat exchanger parts
Chemical equipment parts
Marine parts
Medical and lab parts
Fasteners and bushings
Housings and covers
Custom titanium grade 2 parts
What people ask most about titanium grade 2 parts: what it is, composition, uses, machining, strength, weight, magnetism, corrosion, welding, equivalents, price and tolerances.
Titanium grade 2 is chosen for parts that have to resist corrosion and stay light: clamps, flanges, fittings and parts for chemical, marine and medical equipment.
At PREMSA Industries we machine titanium grade 2 with CNC milling and turning from your file, from a prototype to production.
Titanium grade 2 is chosen when the part has to resist a corrosive environment and stay light.
If your drawing doesn’t specify tolerances, we machine to ISO 2768-m (medium). On dimensions you call out —holes, counterbores, fits and flatness— we can hold ±0.025 mm (±0.001 in), and critical dimensions are checked in inspection.
Titanium grade 2 is machined with CNC milling, CNC turning, drilling and tapping. It conducts little heat, so the heat stays at the cutting edge: it is cut at low speed, with a steady feed, sharp carbide tooling and plenty of coolant, so the surface doesn’t work harden and the tool doesn’t burn.
Because it resists corrosion and stays light, titanium grade 2 is used in many parts made with CNC machining.
Titanium grade 2 is usually the right choice when the part works in a corrosive environment and has to stay light.
