Manufacturing services
CNC milling and turning · From 1 part
Wear pads and guides, slide strips, bushings, plates, guards, covers and parts for food and chemical equipment in HDPE, milled and turned from your file. Upload your CAD and order online, starting at a single part.

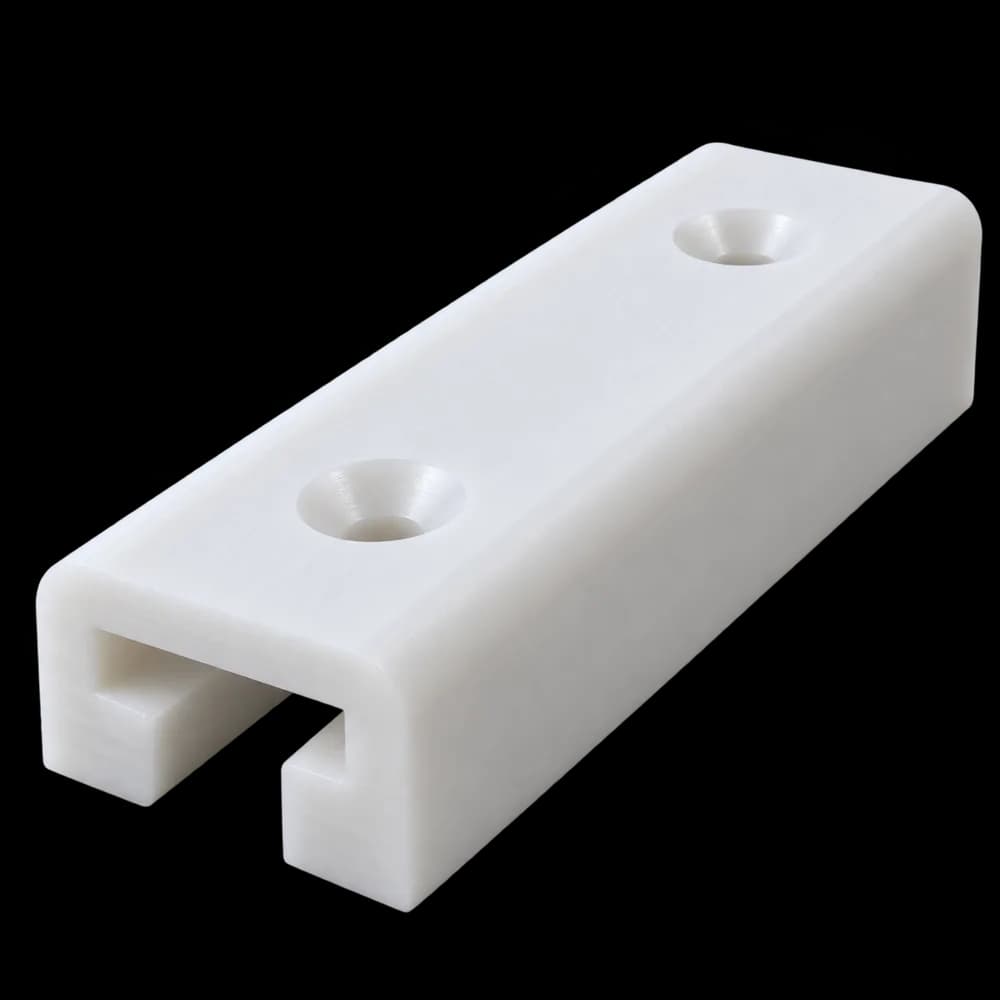

Slide pad
HDPE · 80 × 30 × 20 mm · T-slot · 2 countersunk holes for M5 · CNC milled
1 pc
$72.49 USD
per part
25 pcs
$11.71 USD
per part
-83.85%100 pcs
$9.62 USD
per part
-86.73%HDPE (high-density polyethylene) is a light, tough, slippery plastic. It weighs 0.94–0.97 g/cm³, barely absorbs water, resists acids, bases and many solvents, and takes impacts without breaking. That is why it is used for wear pads and guides, slide strips, plates, guards and parts for food and chemical equipment. At PREMSA we CNC mill and turn it from your file, starting at a single part with an instant price.
HDPE (high-density polyethylene) properties: mechanical, physical, thermal and chemical data to choose the material for your machined part.
Material Type
Semi-crystalline thermoplastic (polyethylene)
Primary Characteristics
Excellent chemical resistance, high impact strength, low friction, flexible, cost-effective
Tensile Strength (Ultimate)
3,000–4,500 psi (20–31 MPa)
Yield Strength
2,500–3,500 psi (17–24 MPa)
Elongation at Break
500–700%
Impact Resistance
Excellent (very high toughness)
Hardness
Shore D55–D70
Density
0.94–0.97 g/cm³ (lightweight)
Elastic Modulus
100,000–200,000 psi (0.7–1.4 GPa)
Coefficient of Friction
Low
Water Absorption
Very low
Moisture Sensitivity
Minimal
Continuous Service Temperature
~80–90 °C (176–194 °F)
Melting Point
~130 °C (266 °F)
Thermal Conductivity
~0.45 W/m·K
Machinability
Good: it cuts easily but is soft; it is clamped with care so it doesn’t distort and cut with sharp tooling so it doesn’t leave burrs
Chemical Resistance
Excellent (resistant to acids, bases, and many solvents)
UV Resistance
Moderate (can degrade without stabilization)
Weldability
Excellent (plastic welding supported)
Common Forms
Plate, sheet and round rod
Typical Applications
Wear pads and guides, slide strips, plates, guards, covers, liners, cutting surfaces, tank and food equipment parts
Rating across key engineering and manufacturing criteria.
Strength
Weight
Machinability
Impact Resistance
Dimensional Stability
Chemical Resistance
Thermal Resistance
Cost Efficiency
Upload your CAD file and get an instant price and delivery date. CNC milling and turning from one part to production.
We CNC mill and turn HDPE parts that have to slide, take impacts and resist chemicals and water.
Slide pads
Wear guides and strips
Bushings and rollers
Plates and bases
Guards
Covers and flanges
Food equipment parts
Tank and chemical parts
Custom HDPE parts
What people ask most about HDPE parts: what it is, uses, machining, friction, strength, temperature, chemicals, food contact, outdoor use, bonding, price and tolerances.
HDPE is chosen for parts that have to slide, take impacts and resist chemicals and water: slide pads, wear guides, slide strips, plates and guards.
At PREMSA Industries we machine HDPE with CNC milling and turning from your file, from a prototype to production.
HDPE is chosen when the part has to slide, take impacts and not be affected by chemicals or water.
If your drawing doesn’t specify tolerances, we machine to ISO 2768-m (medium). On dimensions you call out —slots, holes and fits— we can hold ±0.1 mm (±0.004 in), and critical dimensions are checked in inspection. HDPE is soft and expands with heat, so tight dimensions are measured at room temperature.
HDPE is machined with CNC milling, CNC turning, drilling and tapping. It cuts easily but is soft: it is clamped without over-tightening so it doesn’t distort, cut with sharp tooling so it doesn’t leave burrs and with air or coolant so it doesn’t heat up. A thread tapped straight into HDPE is weak; if it will be tightened often, an insert is added.
Because it slides, takes impacts and resists chemicals, HDPE is used in many parts made with CNC machining.
HDPE is usually the right choice when the part has to slide or take impacts in contact with water or chemicals, without high loads or heat.
