Manufacturing services
CNC milling and turning · From 1 part
Machine guards and windows, protective covers, inspection windows, panels, enclosures, lenses and clear parts in polycarbonate, milled and turned from your file. Upload your CAD and order online, starting at a single part.

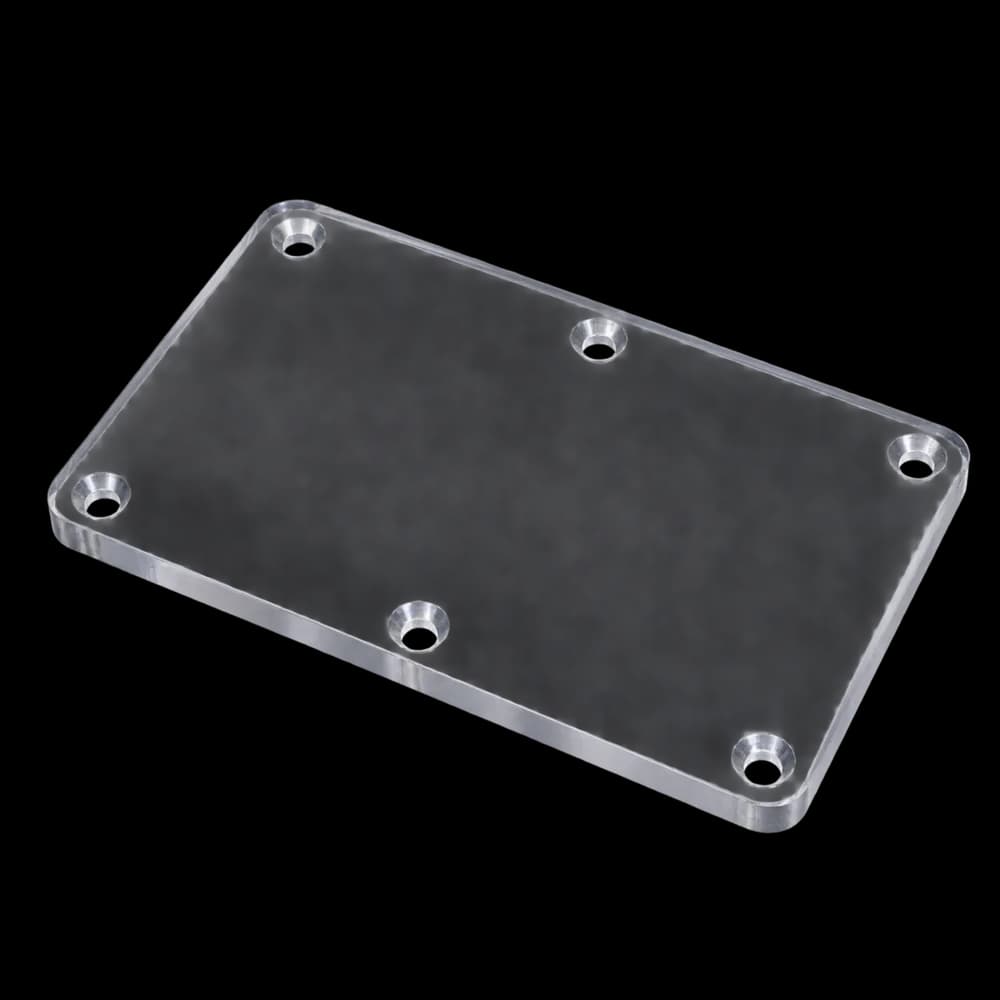

Guard window
Polycarbonate · 150 × 100 × 6 mm · 6 countersunk holes for M5 · Rounded corners · CNC milled
1 pc
$49.06 USD
per part
25 pcs
$9.79 USD
per part
-80.04%100 pcs
$8.36 USD
per part
-82.96%Polycarbonate is a clear and very tough plastic. It takes impacts that would break other clear materials, transmits about 88–90% of light, weighs 1.20 g/cm³ and works up to about 130 °C. That is why it is used for machine guards and windows, protective covers, inspection windows, panels and enclosures. At PREMSA we CNC mill and turn it from your file, starting at a single part with an instant price.
Polycarbonate properties: mechanical, physical, optical and thermal data to choose the material for your machined part.
Material Type
Amorphous engineering thermoplastic
Primary Characteristics
Extremely high impact resistance, transparent, tough, good dimensional stability
Tensile Strength (Ultimate)
8,500–9,500 psi (58–65 MPa)
Flexural Strength
13,000–15,000 psi (90–103 MPa)
Elongation at Break
80–120%
Impact Resistance
Excellent (virtually unbreakable in many applications)
Hardness
Rockwell M70–M75
Density
1.20 g/cm³
Elastic Modulus
340,000 psi (2.3 GPa)
Light Transmission
≈88–90%
Refractive Index
1.58
Heat Deflection Temperature
~130 °C (266 °F)
Glass Transition Temperature
~147 °C (297 °F)
Thermal Conductivity
~0.20 W/m·K
Machinability
Good: it is cut with sharp tooling and without heating it, so it doesn’t melt or keep stress
Formability
Excellent (thermoforming and bending supported)
Chemical Resistance
Moderate (sensitive to certain solvents and stress cracking)
UV Resistance
Moderate: it yellows in sunlight if the sheet has no UV protection
Common Forms
Sheet, plate and rod
Typical Applications
Machine guards and windows, protective covers, inspection windows, panels, enclosures, lenses
Rating across key engineering and manufacturing criteria.
Strength
Weight
Machinability
Impact Resistance
Optical Clarity
Formability
Thermal Resistance
Cost Efficiency
Upload your CAD file and get an instant price and delivery date. CNC milling and turning from one part to production.
We CNC mill and turn polycarbonate parts that have to be see-through and take impacts.
Machine guards
Windows and inspection windows
Protective covers
Equipment panels
Enclosures and lids
Lenses and light guides
Shields and barriers
Clear plates and brackets
Custom polycarbonate parts
What people ask most about polycarbonate parts: what it is, uses, machining, strength, clarity, temperature, scratches, sunlight, chemicals, weight, price and tolerances.
Polycarbonate is chosen for parts that have to be clear and take impacts: guards, windows, covers, inspection windows and panels.
At PREMSA Industries we machine polycarbonate with CNC milling and turning from your file, from a prototype to production.
Polycarbonate is chosen when the part has to be clear and take impacts and load.
If your drawing doesn’t specify tolerances, we machine to ISO 2768-m (medium). On dimensions you call out —holes, contours and fits— we can hold ±0.1 mm (±0.004 in), and critical dimensions are checked in inspection. Polycarbonate expands with temperature, so tight dimensions are measured at room temperature.
Polycarbonate is machined with CNC milling, CNC turning, drilling, countersinking and tapping. It is cut with sharp tooling, good chip evacuation and without heating the part, so it doesn’t melt or crack later. The sheet’s protective film stays on as long as possible so the faces don’t get scratched.
Because it is clear and takes impacts, polycarbonate is used in many parts made with CNC machining.
Polycarbonate is usually the right choice when the part has to be see-through and cannot break.
