Manufacturing services
CNC turning and milling · From 1 part
Precision machined C360 brass parts: nipples, fittings, bushings, threaded inserts and turned components, machined from your file. Upload your CAD and order online, starting at a single part.

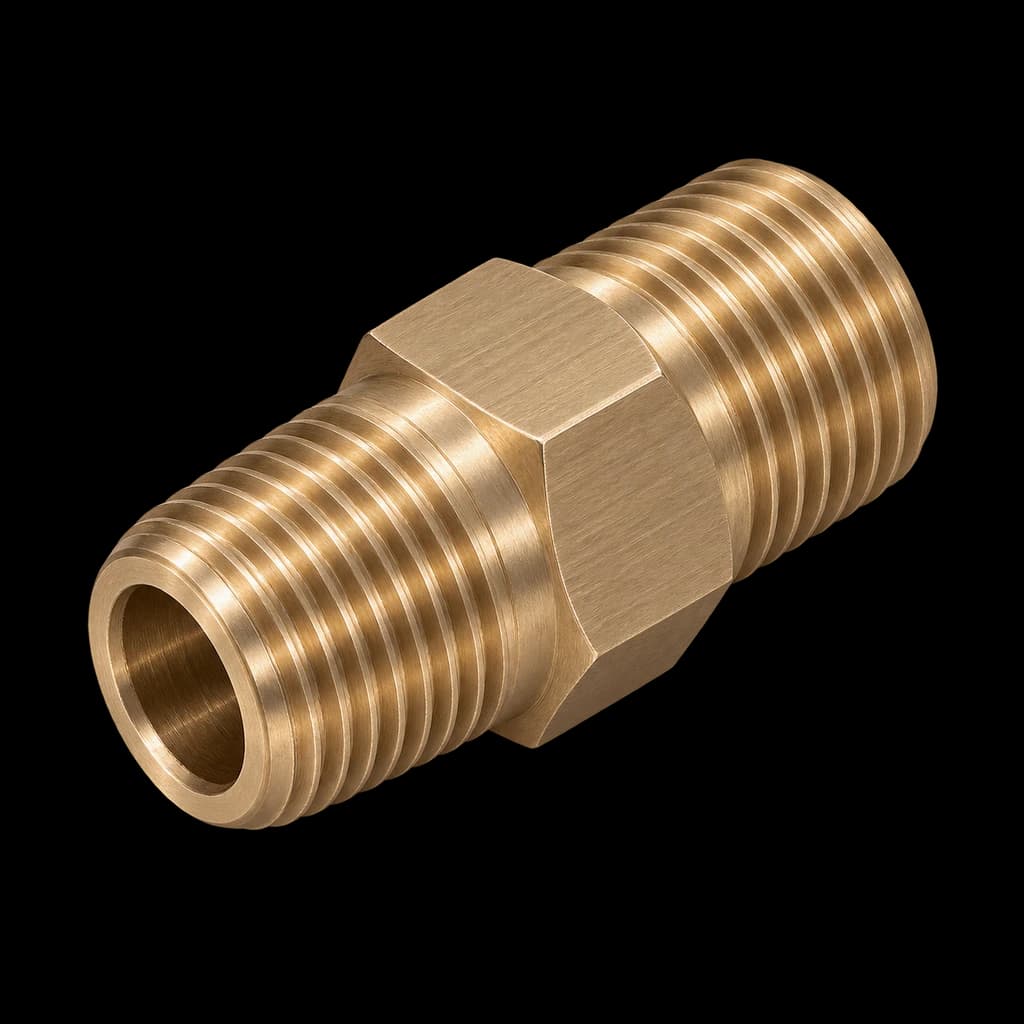

Hex nipple
C360 Brass · ½" NPT male on both ends · ⅞" hex · 45 mm long
1 pc
$55.04 USD
per part
25 pcs
$15.30 USD
per part
-72.20%100 pcs
$13.67 USD
per part
-75.16%C360 brass (UNS C36000, also called 360 brass) is a free-cutting brass: a copper-zinc alloy with 2.5–3.0% lead. The lead breaks the chip, so it turns fast, with clean threads and an excellent finish. That is why it is used for fittings, nipples, valves, bushings, threaded inserts, connectors and instrument parts. At PREMSA we CNC turn and mill it from your file, starting at a single part with an instant price.
Engineering-grade properties of C360 brass, including mechanical, physical, and machining characteristics relevant to precision turned and machined components. This data supports material selection for fittings, valves, fasteners, inserts, and other production hardware.
Alloy Type
Free-cutting brass (copper, zinc and lead)
Primary Characteristics
Free machining, clean threads, good finish, corrosion resistance, non-magnetic
Tensile Strength (Ultimate)
About 400 MPa (58 ksi) in half hard (H02)
Tensile Strength (Yield)
About 310 MPa (45 ksi) in half hard (H02)
Shear Strength
31–45 ksi (210–310 MPa)
Elongation at Break
6–23% (varies with temper)
Hardness
About 78 HRB in half hard (H02)
Density
8.49 g/cm³ (0.307 lb/in³)
Elastic Modulus
15,000 ksi (100 GPa)
Poisson’s Ratio
0.31
Electrical Conductivity
≈ 26% IACS
Thermal Conductivity
≈ 120 W/m·K
Coefficient of Thermal Expansion
≈ 21 µm/m·°C
Melting Range
≈ 885–900 °C (≈ 1625–1650 °F)
Machinability
Excellent (it is the 100 reference on the copper alloy machinability scale)
Formability
Limited (not for tight bends)
Weldability
Fusion welding not recommended (lead causes cracking)
Solderability / Brazability
Soldering excellent; brazing good
Corrosion Resistance
Good in water and air; darkens over time (patina)
Common Forms
Round, hex and square bar
Typical Applications
Nipples, fittings, valves, bushings, threaded inserts, connectors, instrument parts
Material Composition
Copper (Cu): 60.0–63.0%, Lead (Pb): 2.5–3.0%, Iron (Fe): ≤0.35%, Zinc (Zn): balance
ASTM Standard
ASTM B16 / B16M
Rating across key engineering and manufacturing criteria.
Strength
Weight
Machinability
Formability
Wear Resistance
Corrosion Resistance
Electrical Conductivity
Cost Efficiency
Upload your CAD file and get an instant price and delivery date. CNC turning and milling from one part to production.
We CNC turn and mill C360 brass parts for fittings, valves, pneumatic and hydraulic equipment, electrical, instruments and assemblies.
Nipples and threaded fittings
Adapters and couplings
Valve stems and valve parts
Bushings and spacers
Threaded inserts and nuts
Electrical connectors and terminals
Nozzles and spray tips
Sensor and instrument bodies
Decorative parts and hardware
Common questions about custom C360 brass parts: what it is, composition and lead content, properties, hardness, magnetism, corrosion, welding, drinking water, cost and tolerances.
C360 brass is chosen for turned parts with many operations: threads, grooves, holes and fine details. Its lead breaks the chip and allows fast cutting with a good finish. It comes in round, hex and square bar.
At PREMSA Industries we machine C360 with CNC turning and milling from your file, from prototype to production.
C360 is chosen when a part needs a lot of machining and has to resist corrosion from water and air.
If your drawing doesn’t specify tolerances, we machine to ISO 2768-m (medium). On dimensions you call out —holes, fits and datum surfaces— we can hold ±0.025 mm (±0.001 in), and critical dimensions are checked in inspection. C360 is stable and doesn’t move when cut, so it holds tight tolerances well.
The lead doesn’t dissolve in the brass: it stays as very fine particles spread through the metal. When cutting, those particles break the chip and lubricate the edge, which is why C360 machines fast with a good finish. That same lead is what keeps it from being fusion welded and rules it out for drinking-water parts.
C360 machines very well in CNC turning, CNC milling, drilling and tapping.
C360 is not recommended for fusion welding.
Because it is free machining, C360 is used in many turned CNC machined components.
C360 is often the right choice when a part is turned, has threads or many operations, and won’t be in contact with drinking water.
