Manufacturing services
CNC milling and turning · From 1 part
Thrust washers, bushings, wear plates, contacts and connectors in C51000 phosphor bronze, machined from your file. Upload your CAD and order online, starting at a single part.

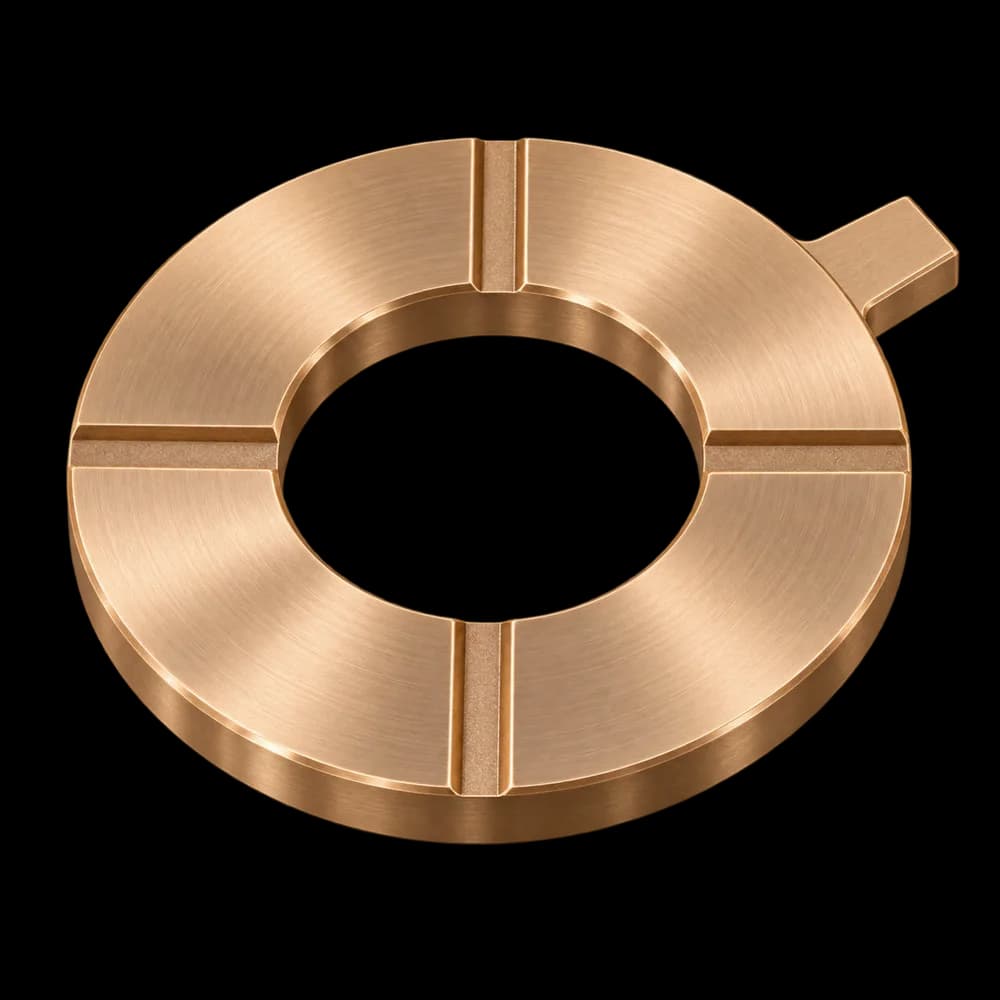

Thrust washer
C51000 Phosphor Bronze · Ø60 × Ø32 × 4 mm · 4 grease grooves · Anti-rotation tab · CNC milled
1 pc
$97.10 USD
per part
25 pcs
$34.37 USD
per part
-64.60%100 pcs
$31.43 USD
per part
-67.63%C51000 phosphor bronze (UNS C51000, ASTM B103 / B139) is a copper alloy with about 5% tin and a little phosphorus. It is strong, withstands wear and fatigue, resists corrosion even in marine environments and conducts electricity. That is why it is used for thrust washers, bushings, wear plates, contacts and connectors. At PREMSA we CNC mill and turn it from your file, starting at a single part with an instant price.
C51000 phosphor bronze properties: mechanical, physical and electrical data to choose the material for your machined part.
Alloy Type
Phosphor Bronze (Cu-Sn-P alloy)
Primary Characteristics
Wear and fatigue resistant, corrosion resistant, electrically conductive, non-magnetic
Tensile Strength (Ultimate)
60–85 ksi (415–585 MPa) depending on temper
Tensile Strength (Yield)
45–75 ksi (310–515 MPa)
Elongation at Break
10–50% (depending on temper)
Hardness
Rockwell B 70–95 (varies by temper)
Density
8.86 g/cm³ (0.320 lb/in³)
Elastic Modulus
16,000 ksi (110 GPa)
Poisson’s Ratio
0.34
Electrical Conductivity
≈ 15% IACS
Thermal Conductivity
≈ 84 W/m·K
Melting Range
950–1050 °C (1740–1920 °F)
Formability
Good: it bends and stamps cold
Machinability
Medium: it is hard and tough; machined with sharp carbide tooling, moderate feeds and coolant
Weldability
Joins well by soldering and brazing; it can also be TIG or MIG welded
Corrosion Resistance
Excellent: withstands seawater, moisture and industrial environments
Common Forms
Plate, sheet, flat bar, bar and wire
Typical Applications
Thrust washers, bushings, wear plates, electrical contacts and connectors, pump and valve parts, marine parts
Material Composition
Copper: balance, tin 4.2–5.8%, phosphorus 0.03–0.35%, zinc 0.30% max, iron 0.10% max, lead 0.05% max
ASTM Standard
ASTM B103 (plate, sheet, strip and rolled bar); B139 (rod and bar); B159 (wire)
Rating across key engineering and manufacturing criteria.
Strength
Weight
Machinability
Formability
Fatigue Resistance
Corrosion Resistance
Electrical Conductivity
Cost Efficiency
Upload your CAD file and get an instant price and delivery date. CNC milling and turning from one part to production.
We CNC mill and turn C51000 phosphor bronze parts that slide, carry loads, conduct current or work in wet environments.
Thrust washers
Bushings and sleeves
Wear plates and guides
Electrical contacts and connectors
Terminals
Pump and valve parts
Marine parts
Instrument parts
Custom C51000 parts
What people ask most about C51000 phosphor bronze parts: what it is, why it is called phosphor bronze, composition, uses, machining, wear, conductivity, magnetism, corrosion, welding, equivalents, price and tolerances.
C51000 phosphor bronze is chosen for parts that slide, carry loads or conduct current and work in wet environments: thrust washers, bushings, wear plates, contacts and connectors.
At PREMSA Industries we machine C51000 with CNC milling and turning from your file, from a prototype to production.
C51000 is chosen when the part has to slide, carry load or conduct without wearing or corroding.
If your drawing doesn’t specify tolerances, we machine to ISO 2768-m (medium). On dimensions you call out —diameters, thicknesses, grooves and fits— we can hold ±0.025 mm (±0.001 in), and critical dimensions are checked in inspection.
C51000 is machined with CNC milling, CNC turning, drilling and tapping. It is hard and tough, so it is run with sharp tooling and moderate feeds to protect the finish on sliding faces.
Because it withstands wear, resists corrosion and conducts, C51000 is used in many parts made with CNC machining.
C51000 is usually the right choice when the part slides, carries load or conducts and works in a wet environment.
