Manufacturing services
CNC turning and milling · From 1 part
Flanges, couplings, fittings, bushings, brackets and parts for welded assemblies in 304L stainless steel, machined from your file. Upload your CAD and order online, starting at a single part.

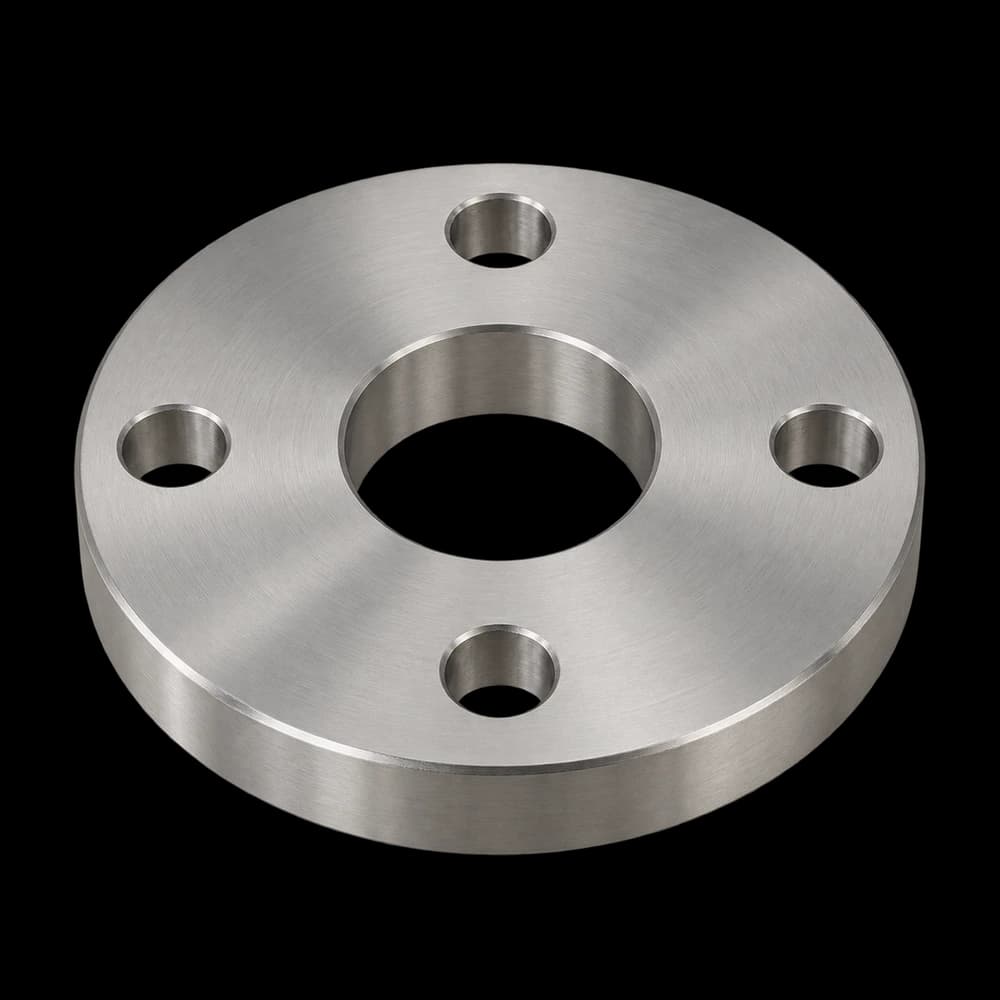

Flange
304/304L Stainless · Ø100 × 15 mm · 4 × Ø14 mm holes
1 pc
$98.63 USD
per part
25 pcs
$35.77 USD
per part
-63.73%100 pcs
$32.79 USD
per part
-66.75%304L stainless steel (UNS S30403, ASTM A276 / A240) is a low-carbon austenitic stainless steel: about 18% chromium, 8% nickel and 0.03% carbon max. That very low carbon is what makes it good for welding: the weld zone keeps its corrosion resistance. That is why it is used for flanges, fittings, tanks and parts that go into a welded assembly. At PREMSA we CNC turn and mill it from your file, starting at a single part with an instant price.
304L stainless steel properties: mechanical, physical and corrosion data to choose the material for your machined part.
Alloy Type
Low-Carbon Austenitic Stainless Steel (18-8)
Primary Characteristics
Corrosion resistant, welds well, low carbon (0.03% max), non-magnetic when annealed
Tensile Strength (Ultimate)
70 ksi (485 MPa) minimum
Tensile Strength (Yield)
25 ksi (170 MPa) minimum
Elongation at Break
40% minimum
Hardness
Rockwell B 92 max / Brinell 201 HB max
Density
8.00 g/cm³ (0.289 lb/in³)
Elastic Modulus
28,000 ksi (193 GPa)
Poisson’s Ratio
0.29
Thermal Conductivity
16.2 W/m·K
Coefficient of Thermal Expansion
17.2 µm/m·°C
Specific Heat
500 J/kg·K
Melting Range
1400–1450 °C (2550–2640 °F)
Machinability
Moderate: it work hardens; machined with sharp tooling, steady feeds and coolant
Formability
Excellent (suitable for bending, forming, and deep drawing)
Weldability
Excellent: thanks to its low carbon, the weld zone keeps its corrosion resistance
Corrosion Resistance
Excellent (good resistance in atmospheric, food-processing, and many mild chemical environments)
Common Forms
Round bar, plate, sheet and tube; much bar stock is supplied dual-certified 304/304L
Typical Applications
Flanges, couplings and fittings, bushings, brackets, tank and piping parts, food and process equipment
Material Composition
Iron (Fe): balance, Chromium (Cr): 18–20%, Nickel (Ni): 8–12%, Carbon (C): ≤0.03%, Manganese (Mn): ≤2.0%, Silicon (Si): ≤0.75%, Phosphorus (P): ≤0.045%, Sulfur (S): ≤0.03%, Nitrogen (N): ≤0.10%
ASTM Standard
ASTM A276 / A479 (bar); A240 (plate and sheet); A312 (pipe)
Rating across key engineering and manufacturing criteria.
Strength
Weight
Machinability
Formability
Weldability
Corrosion Resistance
Thermal Resistance
Cost Efficiency
Upload your CAD file and get an instant price and delivery date. CNC turning and milling from one part to production.
We CNC turn and mill 304L stainless parts that get welded, are in contact with fluids or have to be cleaned often.
Flanges and end caps
Couplings, nipples and threaded (NPT) fittings
Weld-on parts for tanks and piping
Bushings, spacers and sleeves
Brackets and mounting plates
Food and beverage equipment parts
Pump and valve components
Pharmaceutical and lab equipment parts
Custom 304L parts
What people ask most about 304L stainless parts: what it is, what the L means, composition, rust, magnetism, food grade, welding, machining, equivalents, price and tolerances.
304L stainless steel is chosen for parts that have to resist corrosion and will be welded: flanges, fittings, tank and piping parts, and food equipment.
At PREMSA Industries we machine 304L with CNC turning and milling from your file, from a prototype to production.
304L is chosen when the part has to resist corrosion, be welded and be cleaned often.
If your drawing doesn’t specify tolerances, we machine to ISO 2768-m (medium). On dimensions you call out —diameters, holes, threads and fits— we can hold ±0.025 mm (±0.001 in), and critical dimensions are checked in inspection.
304L is machined with CNC turning, CNC milling, drilling and tapping. Because it work hardens, every pass has to cut below the hardened layer.
304L is welded with TIG, MIG or stick, usually with 308L filler.
Because it resists corrosion and welds well, 304L is used in many parts made with CNC machining.
304L is usually the right choice when the part has to resist corrosion and will also be welded.
