Manufacturing services
CNC turning and milling · From 1 part
Bushings, bearings, thrust washers and wear plates in C93200 SAE 660 bronze, machined from your file. Upload your CAD and order online, starting at a single part.

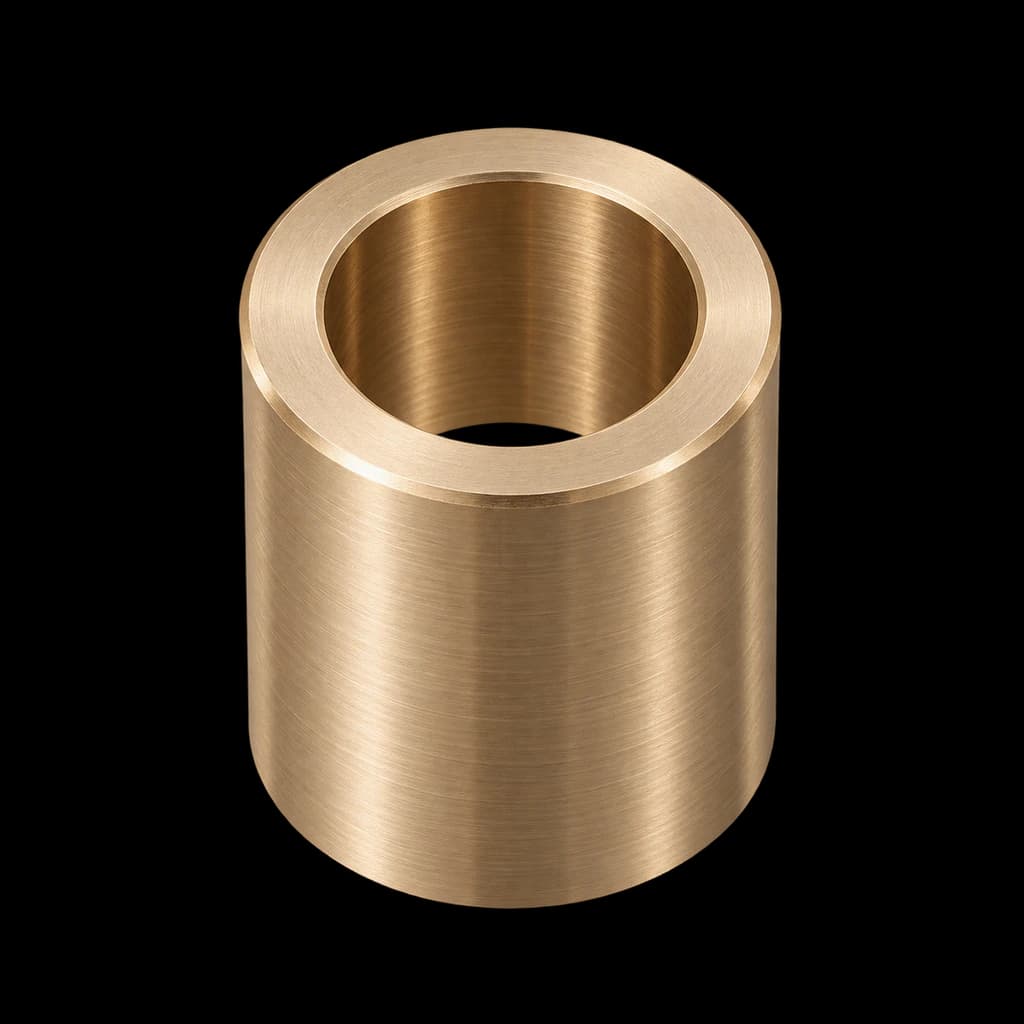

Plain bushing
C93200 Bronze (SAE 660) · Ø35 × Ø25 × 40 mm · CNC turned
1 pc
$64.75 USD
per part
25 pcs
$24.24 USD
per part
-62.56%100 pcs
$22.27 USD
per part
-65.61%C93200 bronze (UNS C93200, SAE 660) is a leaded tin bronze: copper with about 7% tin, 7% lead and 3% zinc. It is the bushing and bearing bronze: the lead makes it slide well against the shaft and machine very easily, and it carries load and resists wear. At PREMSA we CNC turn and mill it from your file, starting at a single part with an instant price.
C93200 (SAE 660) bronze properties: mechanical, physical and machining data to choose the material for your bushing or wear part.
Material Type
High-Leaded Tin Bronze (SAE 660)
Composition
Copper 81–85%, tin 6.3–7.5%, lead 6.0–8.0%, zinc 2.0–4.0%, nickel 1.0% max, iron 0.20% max, antimony 0.35% max
Primary Characteristics
Slides well against the shaft, machines very easily, carries load and resists wear, corrosion resistant, non-magnetic
Tensile Strength (Ultimate)
35 ksi (241 MPa)
Tensile Strength (Yield)
20 ksi (138 MPa)
Elongation at Break
10–20%
Brinell Hardness
60–70 HB
Density
8.93 g/cm³ (0.322 lb/in³)
Elastic Modulus
14,500 ksi (100 GPa)
Thermal Conductivity
59 W/m·K (≈ 34 BTU/ft·hr·°F)
Coefficient of Thermal Expansion
18.0 µm/m·°C
Specific Gravity
8.93
Electrical Conductivity
12% IACS
Machinability
Excellent: the lead breaks the chip; it machines fast with a good finish
Weldability
Not recommended for welding due to the lead; it joins by soldering
Corrosion Resistance
Good: withstands water, seawater, brine and oils
Surface Treatment
Usually as machined; it can be polished or plated
Common Forms
Solid bar, hollow bar (tube) and plate
Typical Applications
Bushings, bearings, thrust washers, wear plates and guides, pump bushings, machinery parts
Standards
ASTM B505 (continuous cast: bar and tube), B584 (sand castings), B271 (centrifugal castings); SAE 660
Rating across key engineering and manufacturing criteria.
Anti-Friction
Wear Resistance
Machinability
Load Capacity
Conformability
Corrosion Resistance
Weldability
Cost Efficiency
Upload your CAD file and get an instant price and delivery date. CNC turning and milling from one part to production.
We CNC turn and mill C93200 SAE 660 bronze parts that rotate or slide against another part and have to last.
Plain bushings
Flanged bushings
Bearings
Thrust washers
Wear plates and guides
Pump bushings
Bushings with grease grooves
Machinery parts
Custom C93200 parts
What people ask most about C93200 SAE 660 bronze parts: what it is, composition, uses, why it is used for bushings, machining, lead, hardness, magnetism, corrosion, welding, equivalents, price and tolerances.
C93200 bronze is chosen for parts that rotate or slide against another and have to last: bushings, bearings, thrust washers and wear plates.
At PREMSA Industries we machine C93200 with CNC turning and milling from your file, from a prototype to production.
C93200 is chosen when the part has to rotate or slide against a shaft without wearing out.
If your drawing doesn’t specify tolerances, we machine to ISO 2768-m (medium). On dimensions you call out —bore, outside diameter, length and bushing fits— we can hold ±0.025 mm (±0.001 in), and critical dimensions are checked in inspection.
C93200 is machined with CNC turning, CNC milling, drilling and tapping. The lead breaks the chip, so it runs fast and leaves a good finish on the bore, which is the working face of a bushing.
Because it slides well, carries load and machines easily, C93200 is used in many parts made with CNC machining.
C93200 is usually the right choice when the part rotates or slides against a shaft and has to last.
