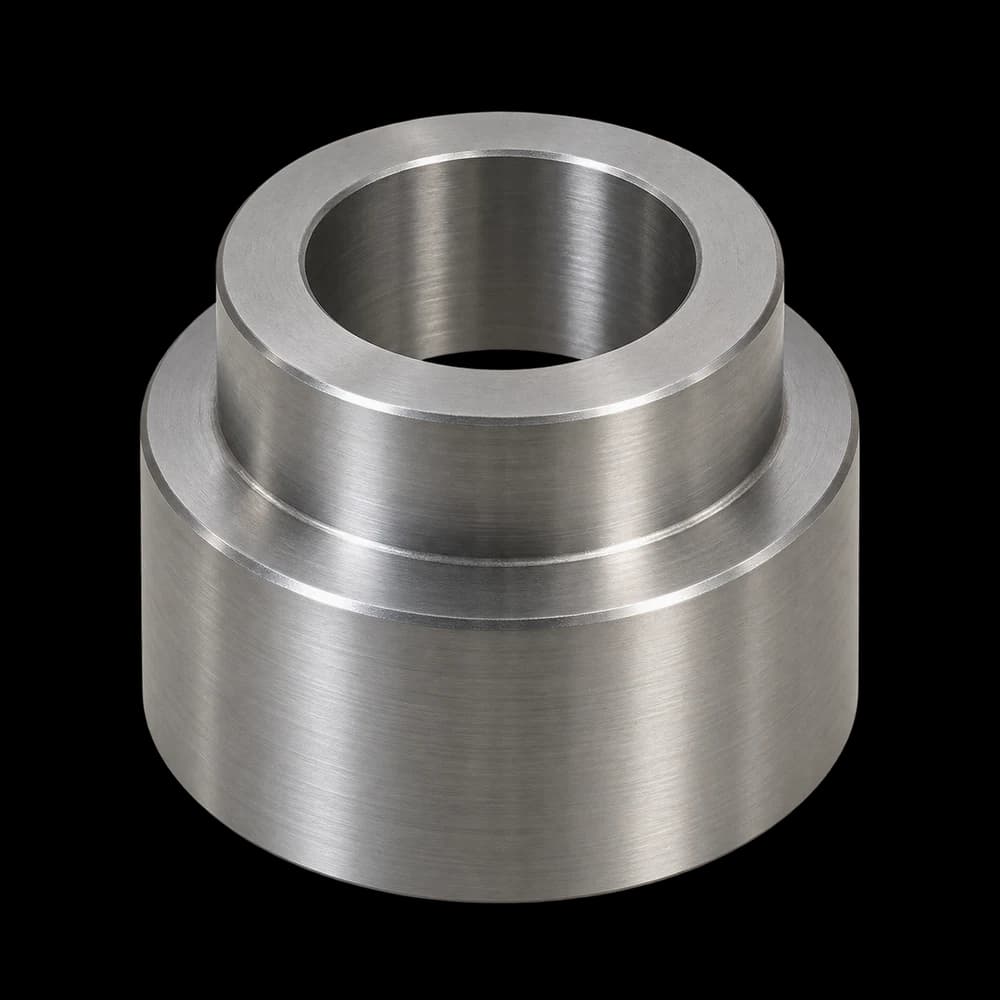

Stepped Bushing
CNC turning
- Approx. 40 × 35 mm
- CNC Machining, Deburr, Through Hole
1 pc
$68.00
USD / part
25 pcs
$14.16
USD / part
-79.18%100 pcs
$10.56
USD / part
-84.47%CNC turning · From one part
Custom Bushings Made to Your Specs
Bushings to your size for anyone who needs a part: students, makers, startups, machine shops, engineers and businesses of any size. Configure it online or upload your drawing, and order from one part.
Upload your 3D filesDrag your files here
STEP, STP, STL, 3MF, DXF, DWG · Drawings as PDF or photo · Start without an account
Confidential files. Your design and intellectual property stay yours.
No CAD file? Request a manual quote
What we make
Types of custom bushings

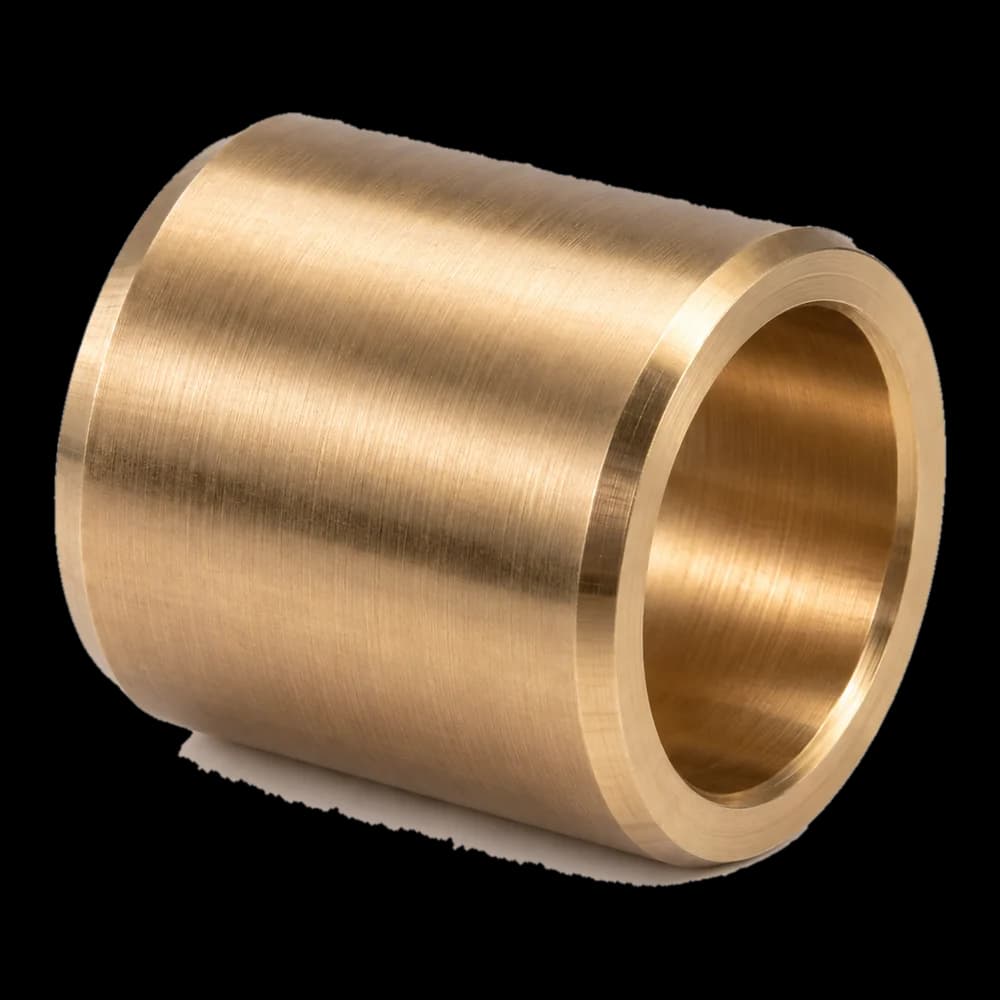

Plain Bushing
Cylindrical with a through bore and lead-in chamfers. Configure it online by outer Ø, inner Ø and length.
Learn more

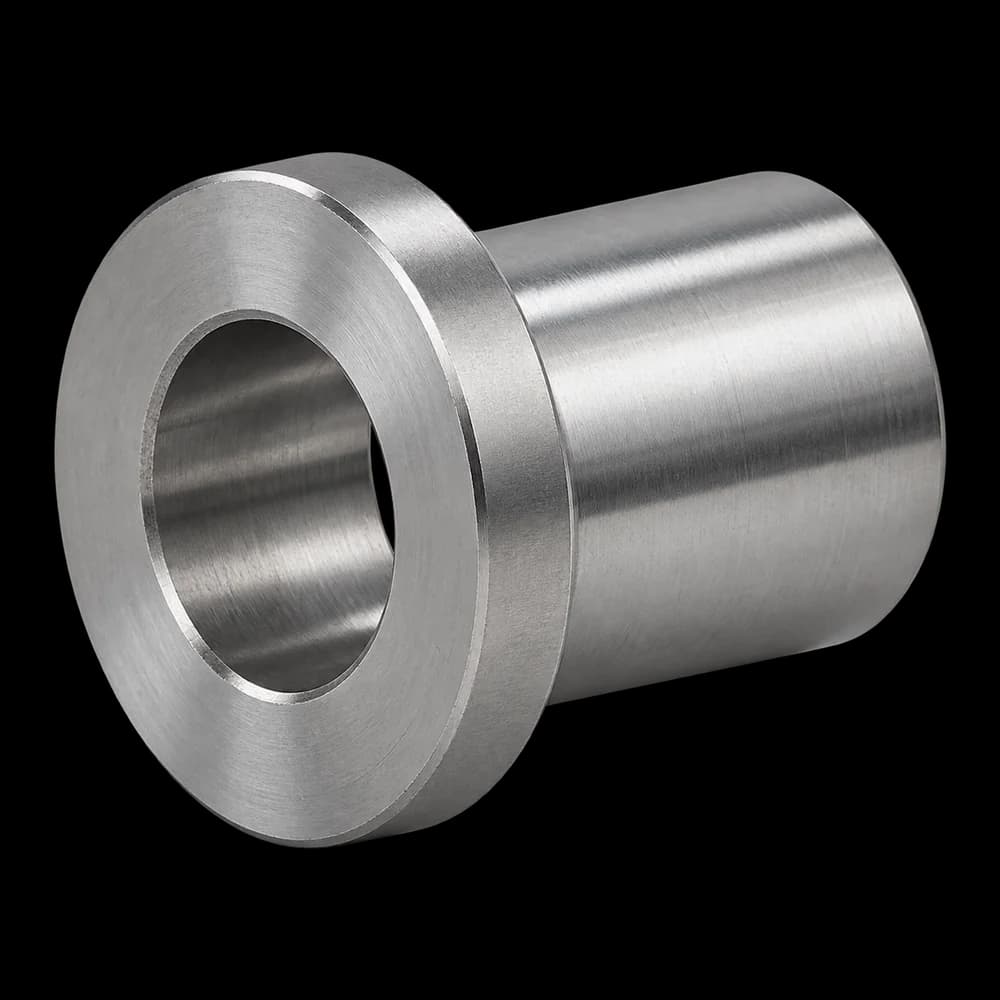

Stepped Bushing
With a step or flange to seat against a shoulder, work as an axial stop or guide two different shafts.
Learn more

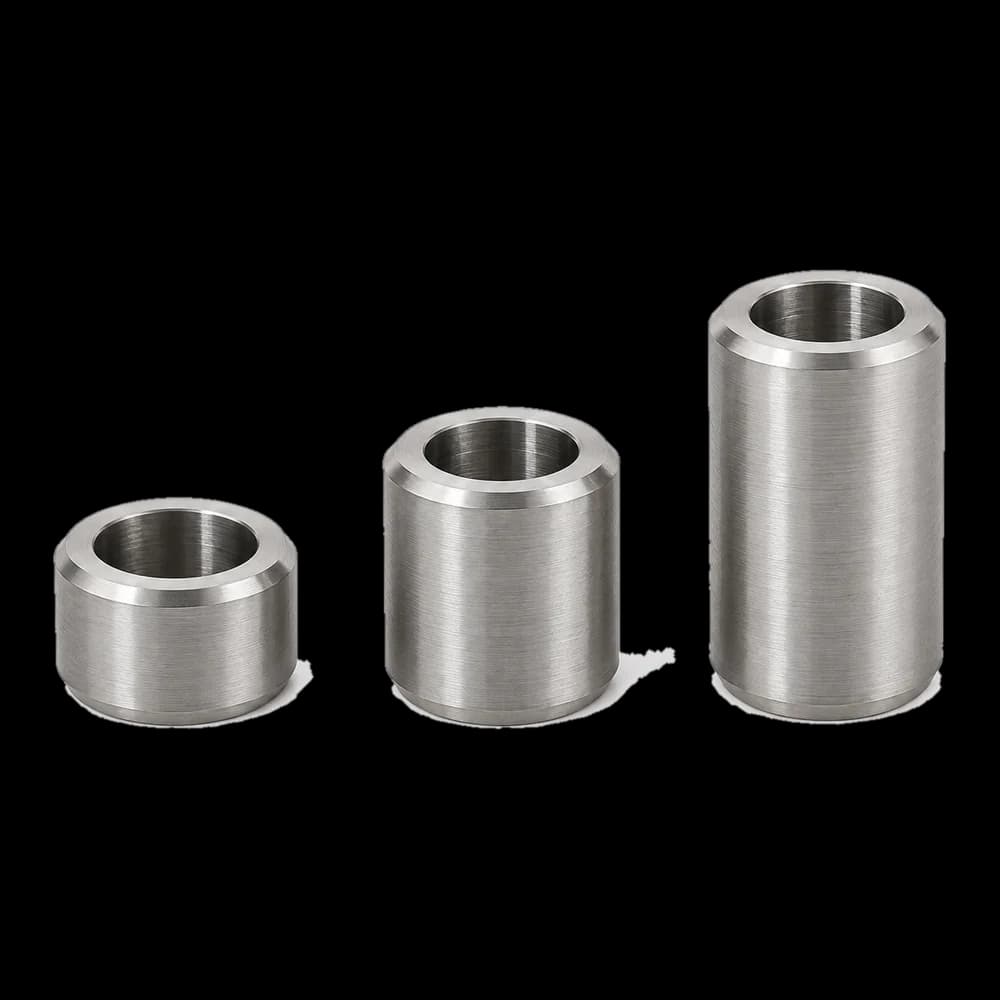

Spacers and Standoffs
Thin-wall tubes cut to the exact length to keep the distance between two parts.
Learn more

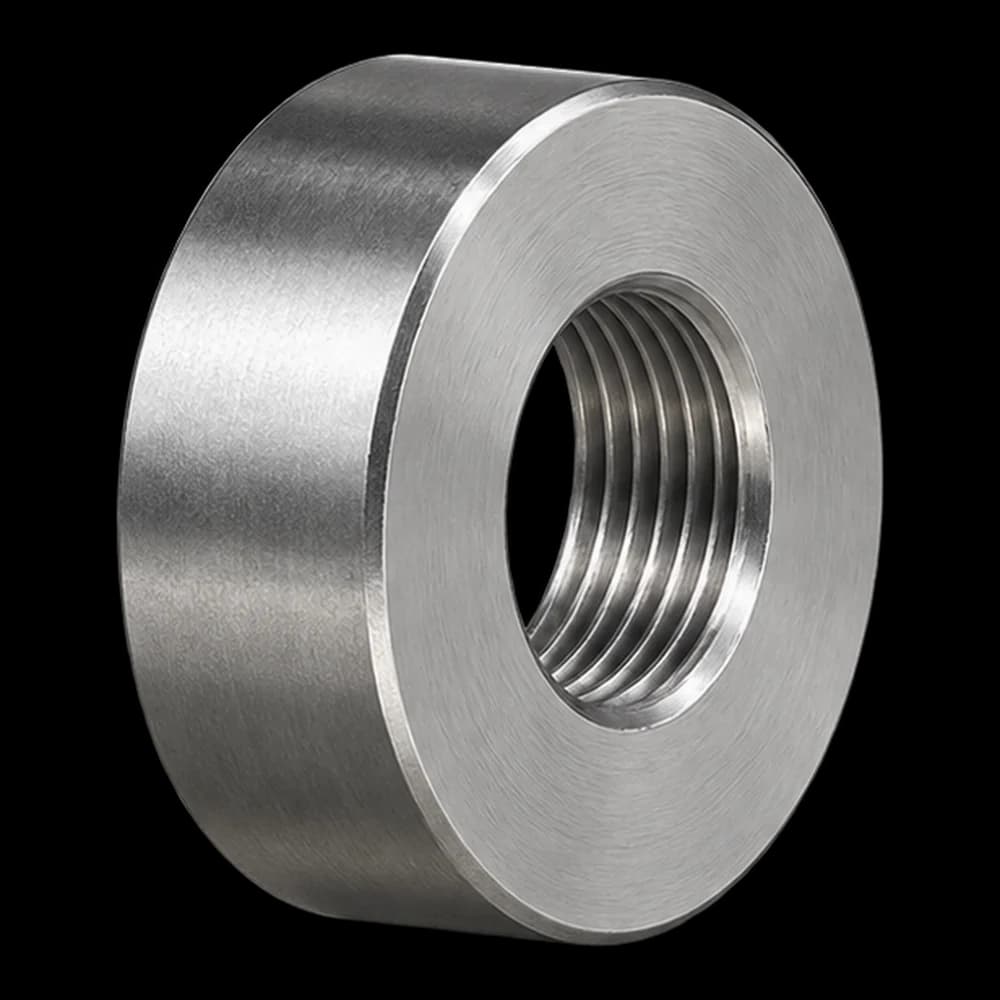

Threaded Bushings
With internal or external threads, metric or unified, per your drawing.
Learn morePrice examples
How price changes with quantity
Four bushing geometries with reference prices by quantity. Setup is spread across the batch, so the price per part decreases as quantity grows.
Already have your bushing? Quote it online

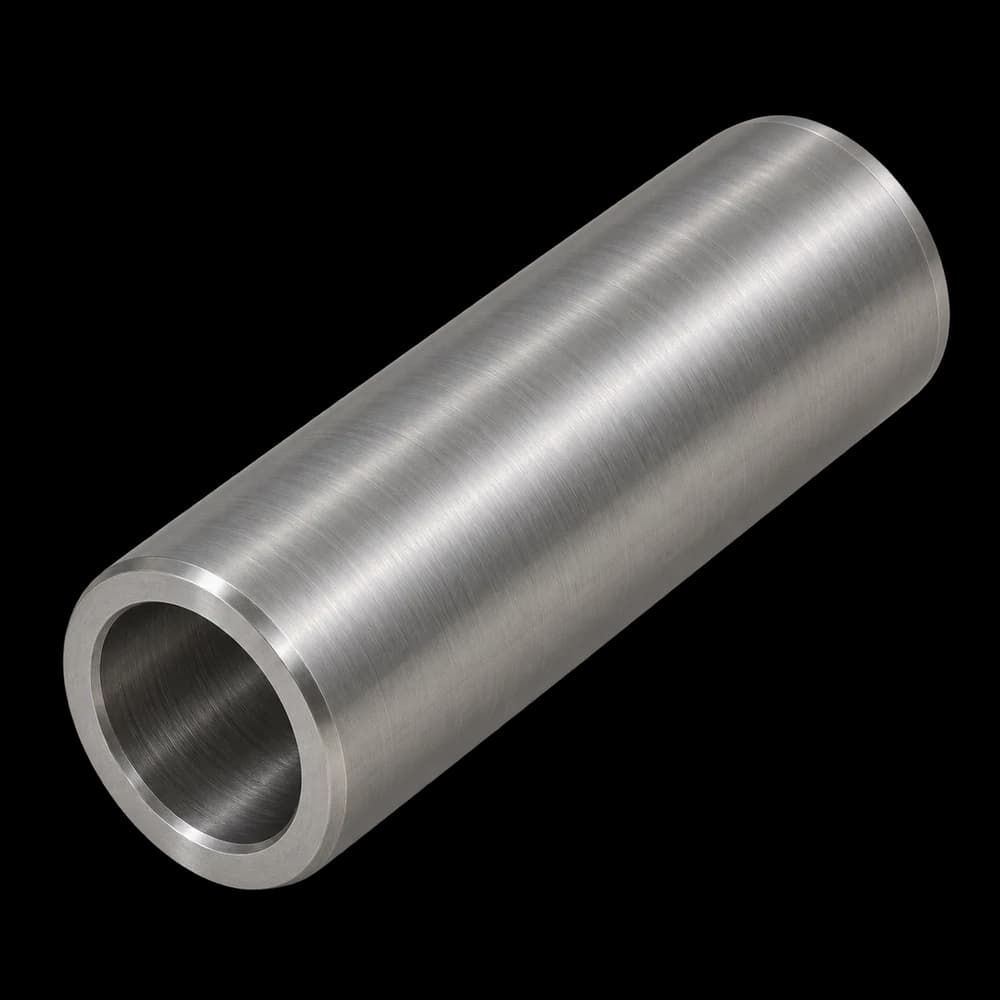

Plain Bushing
CNC turning
- Approx. 25.4 × 65 mm
- CNC Turning, Dimensional Verification
1 pc
$72.43
USD / part
25 pcs
$11.04
USD / part
-84.76%100 pcs
$7.72
USD / part
-89.34%

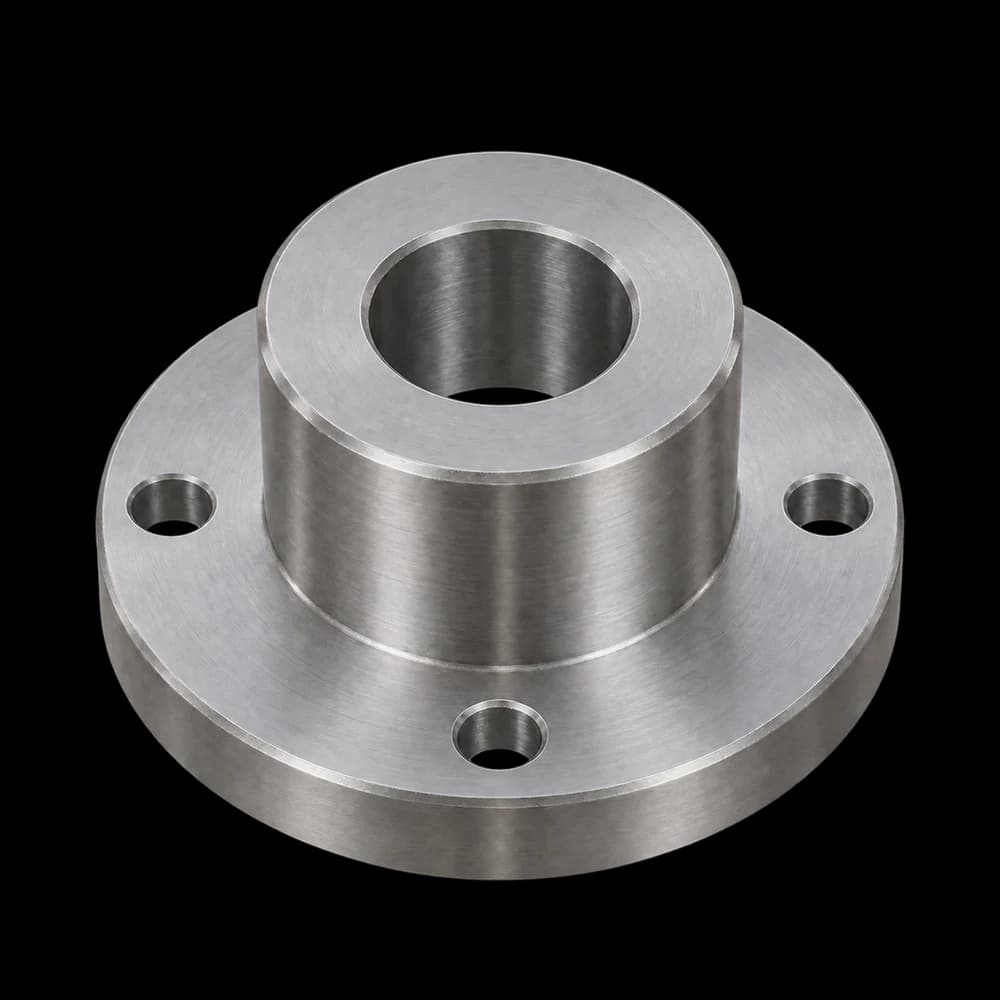

Mounting Flange Bushing
Steel · Turning and drilling
- Ø70 × 32 mm · Ø22 through bore
- 4 Ø6.5 mounting holes in flange
- Estimated price
1 pc
$134.00
USD / part
25 pcs
$23.26
USD / part
-82.64%100 pcs
$18.84
USD / part
-85.94%

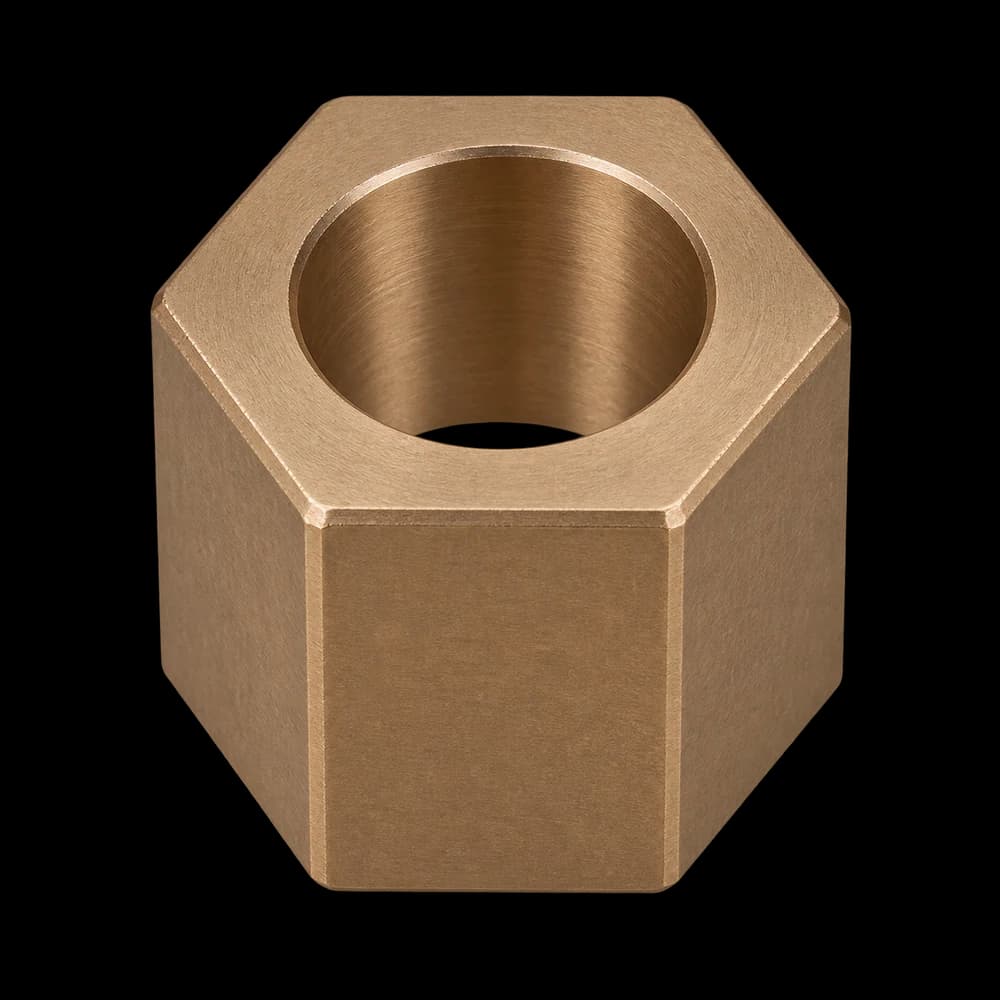

Hexagonal Bushing
Bronze · Through bore
- 30 mm across flats × 25 mm long
- Ø18 through bore · Hexagonal exterior
- Estimated price
1 pc
$78.50
USD / part
25 pcs
$22.39
USD / part
-71.48%100 pcs
$17.63
USD / part
-77.54%
Reference amounts in USD per part, excluding shipping and tax. The mounting-flange and hexagonal examples are material, setup and machining estimates. Final pricing depends on geometry, tolerances, finishes and material availability.
No CAD file? Configure your bushing
In the portal template you choose outer Ø, inner Ø, length and chamfers. If it has a step, thread or groove, upload your drawing.
Configure my bushingWhy PREMSA
Bushings that fit the first time
We make bushings from 1 piece and verify the fit of every batch before it ships.
From one part
No minimum order: one replacement bushing or a production run, with quantity pricing in the quote.
Fits and concentricity
ISO 2768-m tolerances by default and down to ±0.025 mm on the dimensions you specify, with the bore fit inspected.
Inspection and reports
Dimensional report, FAI and certificates on request, so your quality team can release without re-measuring.
Shipping to 52 countries
From Monterrey to all of Mexico and 52 countries, with duties estimated before you pay.
To design your bushing
Turning and tolerance guides
FAQ
About custom bushing manufacturing
- What do I need to quote a bushing?
- The outer diameter, inner diameter, length and quantity. For a plain bushing, configure it in the portal template with no file; if it has a step, thread or groove, upload your STEP or PDF drawing. If your bushing has a specified fit (for example H7), put it on the drawing.
- Can I order a single bushing?
- Yes. There is no minimum order: quote from one part, and the quote shows how the price per part drops with quantity.
- What tolerances can you hold on a bushing?
- ISO 2768-m general tolerances apply by default. On the dimensions you specify on your drawing we can reach ±0.025 mm, including fits such as H7 on the bore. Critical dimensions are checked at inspection.
- What fit does a pressed bushing need?
- A pressed bushing has interference with its housing (for example H7/p6) so it will not spin or walk out; the shaft usually runs with a clearance fit (for example H7/g6 or H7/f7) so it turns with controlled play. The values are in our ISO 286 fit chart.
- Do you make stepped, threaded or grooved bushings?
- Yes. The portal template covers the plain bushing; for a step or flange, thread, lubrication groove, grease-fitting hole or keyway, upload your STEP or drawing and we will quote it.
- Why do bushings have a chamfer?
- The lead-in chamfer guides the shaft and the bushing on assembly and keeps the edges from scoring or burring. That is why the template includes one by default (1 mm × 45°); you can change or remove it.
- Can you make a bushing from a sample or a paper drawing?
- Yes. If you have no CAD file, request a manual quote in the portal and attach photos or the scanned drawing with dimensions; our team reviews it and gets back to you.
- How long does the quote take?
- Your bushing is priced instantly when you upload your file. Only if it has a complex geometry or a technical drawing with specific tolerances does it go to engineering review before the price is confirmed. The lead time appears on your quote.
Bushings turned to your dimensions
A bushing guides and supports a shaft, reduces friction and protects the housing from wear: when it wears out, you replace the bushing, not the whole part. That is why it shows up in almost every machine: molds, conveyors, hinges, pivots, suspensions and agricultural equipment.

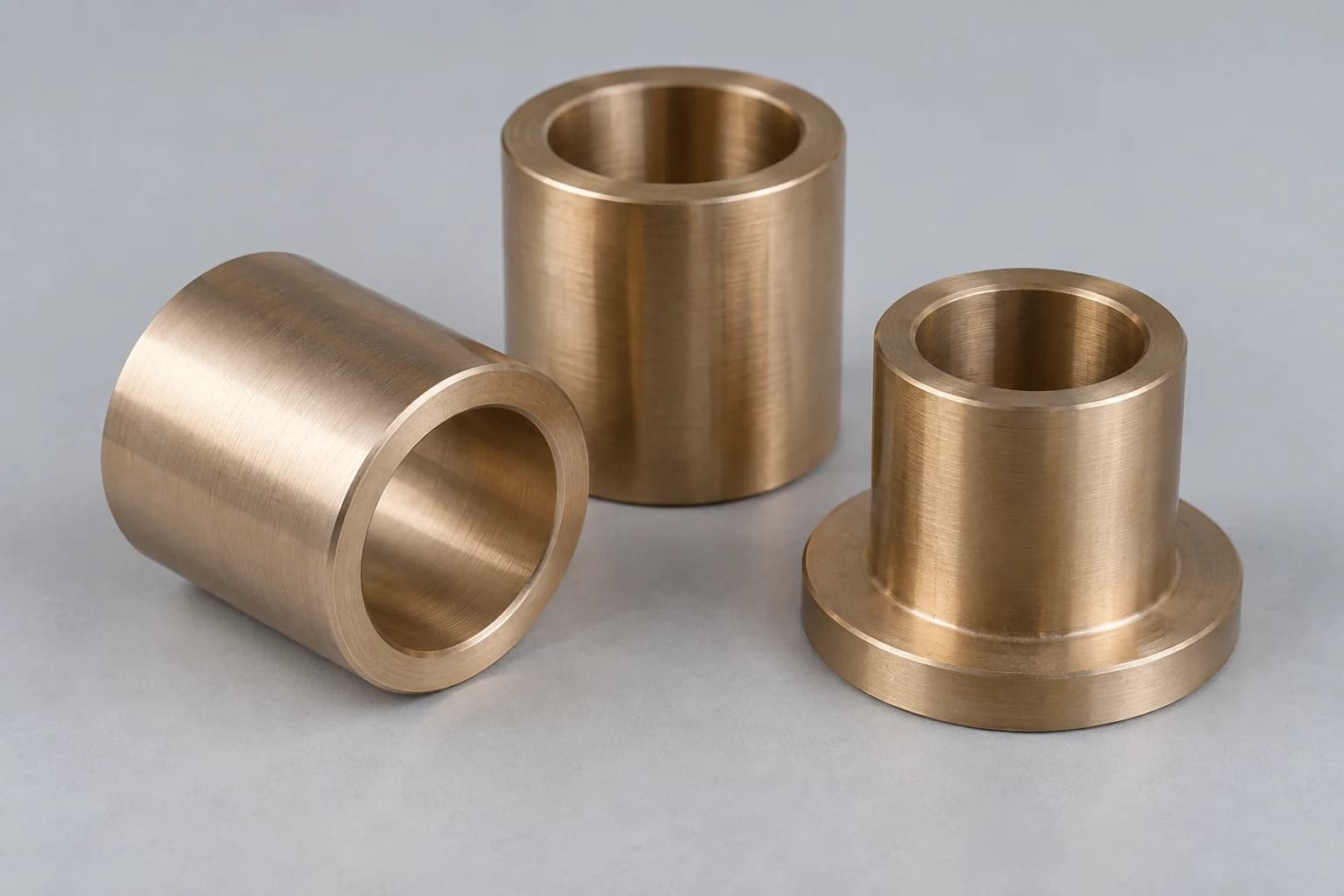

A plain bushing is a cylinder with a through bore; a stepped one (also called flanged or collared) changes diameter to seat against a shoulder and work as an axial stop; a spacer keeps an exact distance between two parts; and bushings with a thread, groove or lubrication hole add what the application needs to be fastened or greased.
What makes a bushing work is not only its size: it is the fit with the shaft and the housing (interference or sliding), the concentricity between the outer and inner diameters, the lead-in chamfer that keeps the shaft from being damaged on assembly and the bore finish. If your drawing calls out a fit, we quote it and inspect against that tolerance.
There are two ways to order: configure the plain bushing in the portal template, or upload your STEP or PDF drawing if it has a step, thread, groove or any other feature. Quote from one part; the price per part drops as the quantity goes up.
