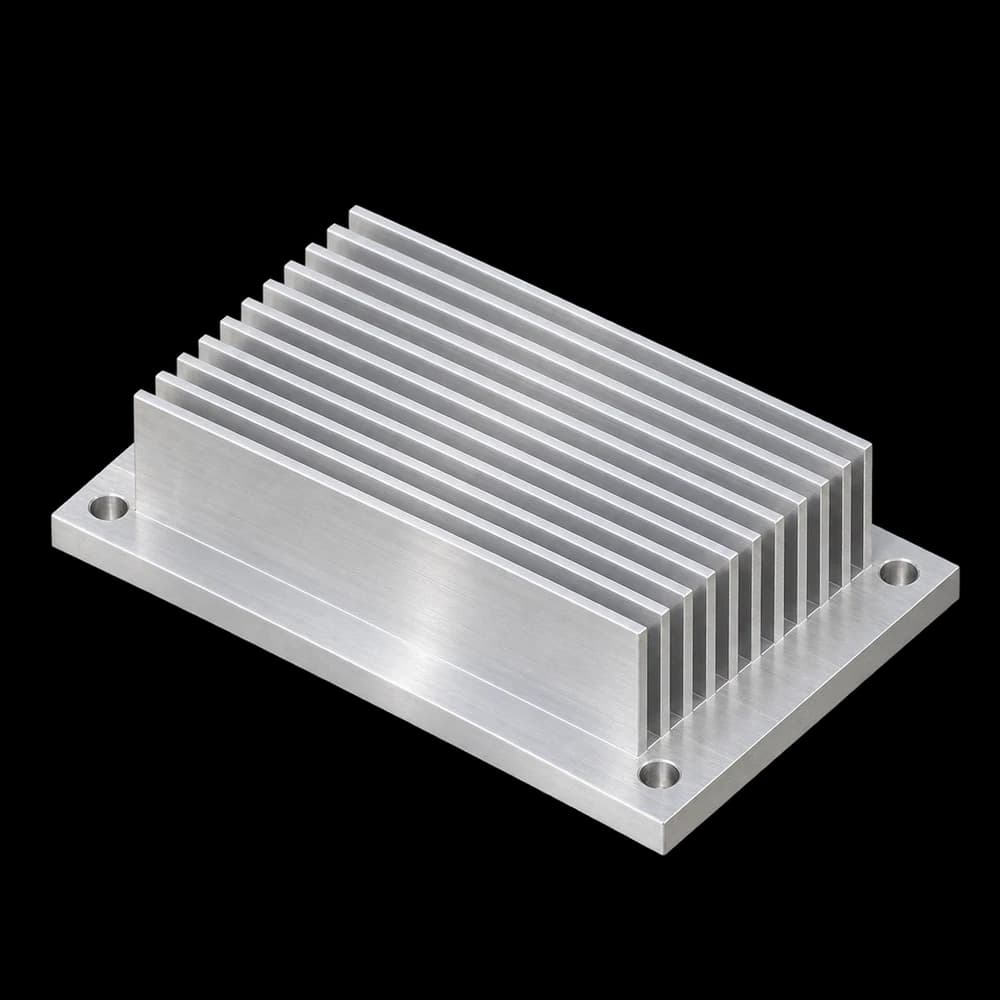

Heat Sink
6061-T6 Aluminum · Uncoated
- Approx. 100 × 60 × 25 mm
- CNC milling · 12 fins and 4 mounting holes
1 pc
$98.00
USD / part
25 pcs
$51.31
USD / part
-47.64%100 pcs
$44.76
USD / part
-54.33%CNC turning and milling · From 1 part
Aluminum
Machining
6061-T6 and 7075-T6 aluminum, with anodizing, for anyone who needs a part: students, makers, startups, machine shops, engineers and businesses of any size. Upload your file and order from 1 part.

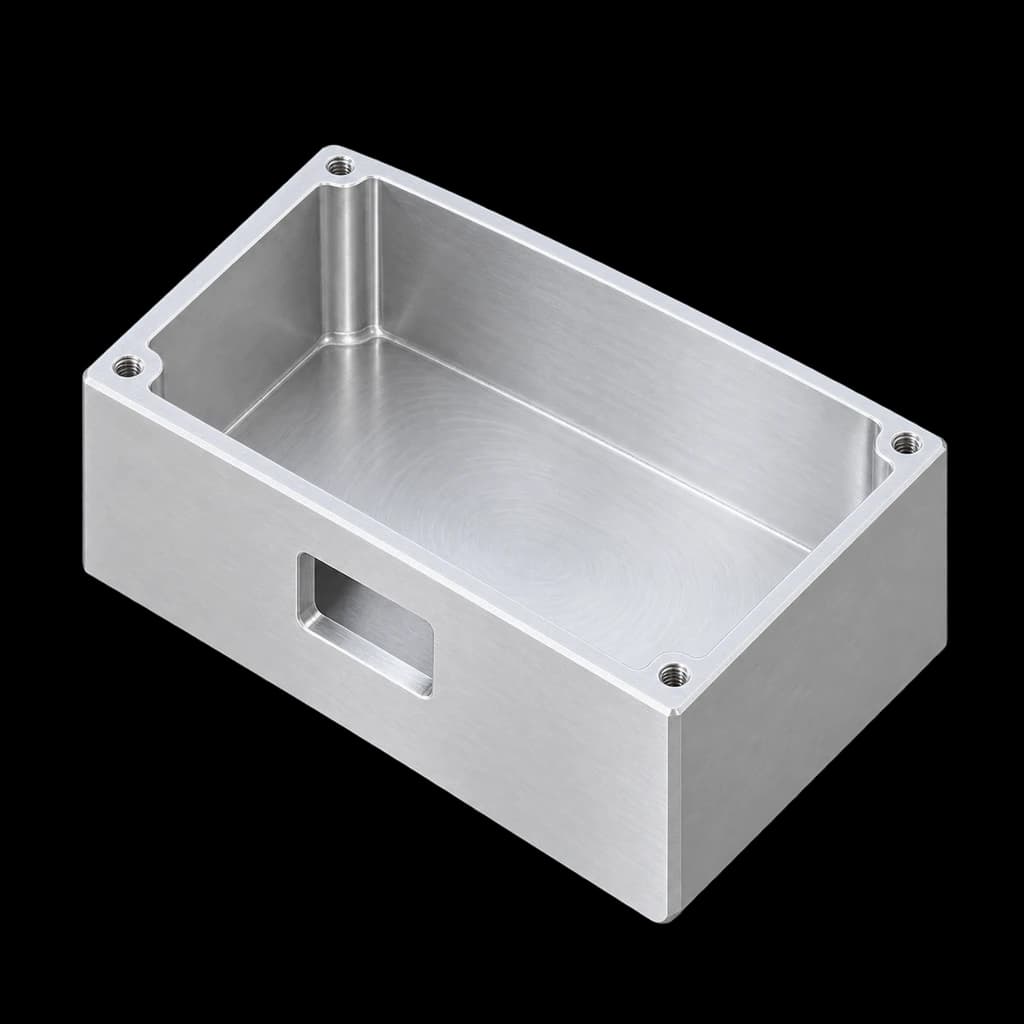

Aluminum housing
6061-T6 aluminum · Approx. 100 × 70 × 40 mm
1 pc
$118.40 USD
per part
25 pcs
$61.20 USD
per part
-48.31%100 pcs
$53.91 USD
per part
-54.47%What we machine in aluminum
Aluminum alloys
Price examples
How the price changes with quantity
Aluminum parts quoted with the same pricing model as the portal: setup is spread across the parts, so the price per part drops with volume.
Already have your part? Quote it online

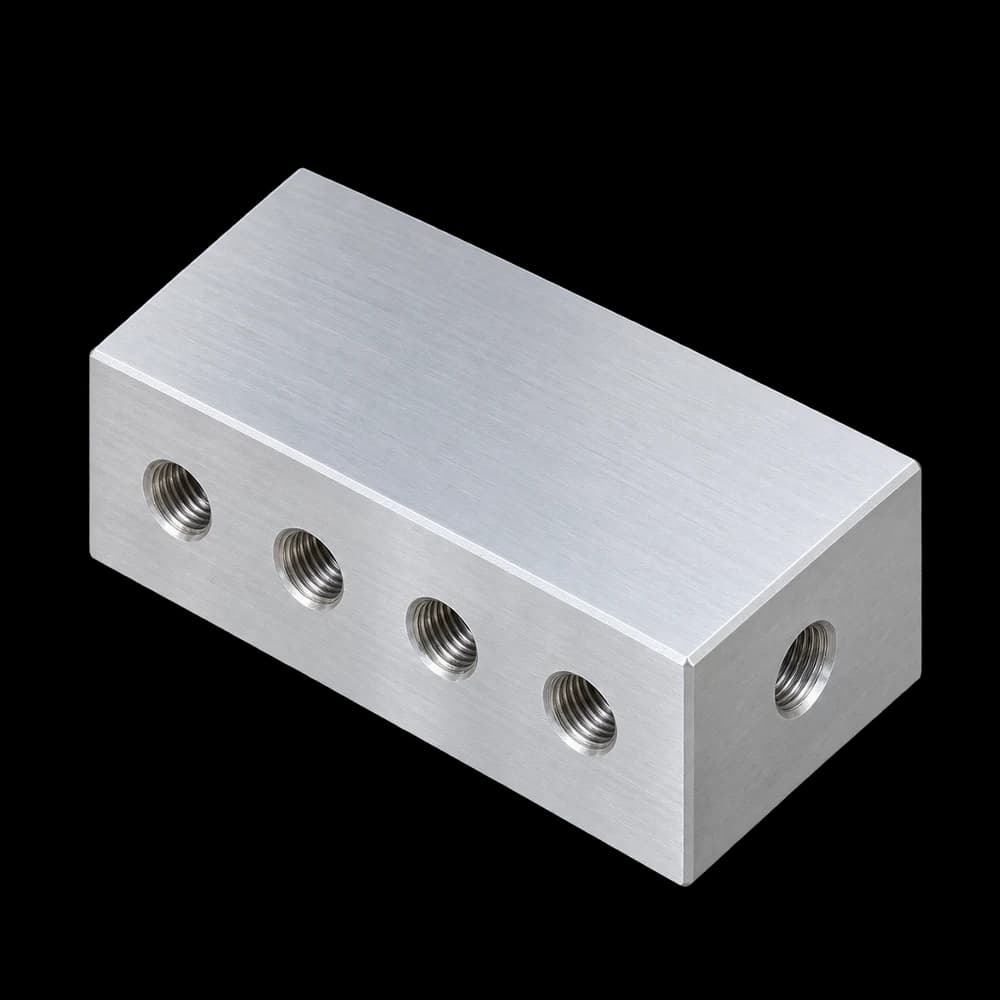

Pneumatic Manifold
6061-T6 Aluminum · Uncoated
- Approx. 80 × 40 × 30 mm
- CNC milling · Cross-drilled ports and 6 threads
1 pc
$104.00
USD / part
25 pcs
$40.35
USD / part
-61.20%100 pcs
$34.63
USD / part
-66.70%

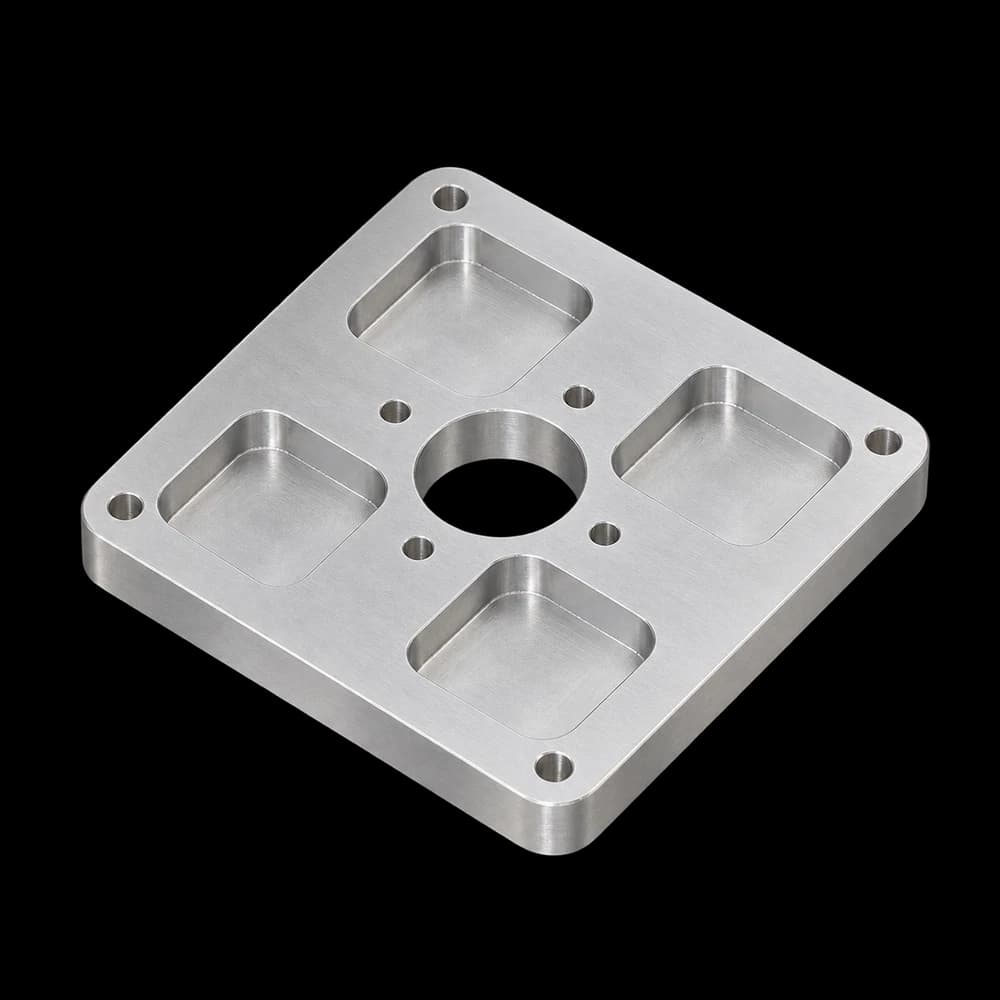

Robot End-of-Arm Plate
7075-T6 Aluminum · Uncoated
- Approx. 120 × 120 × 12 mm
- CNC milling · Lightening pockets and bolt pattern
1 pc
$112.00
USD / part
25 pcs
$89.45
USD / part
-20.13%100 pcs
$80.01
USD / part
-28.56%

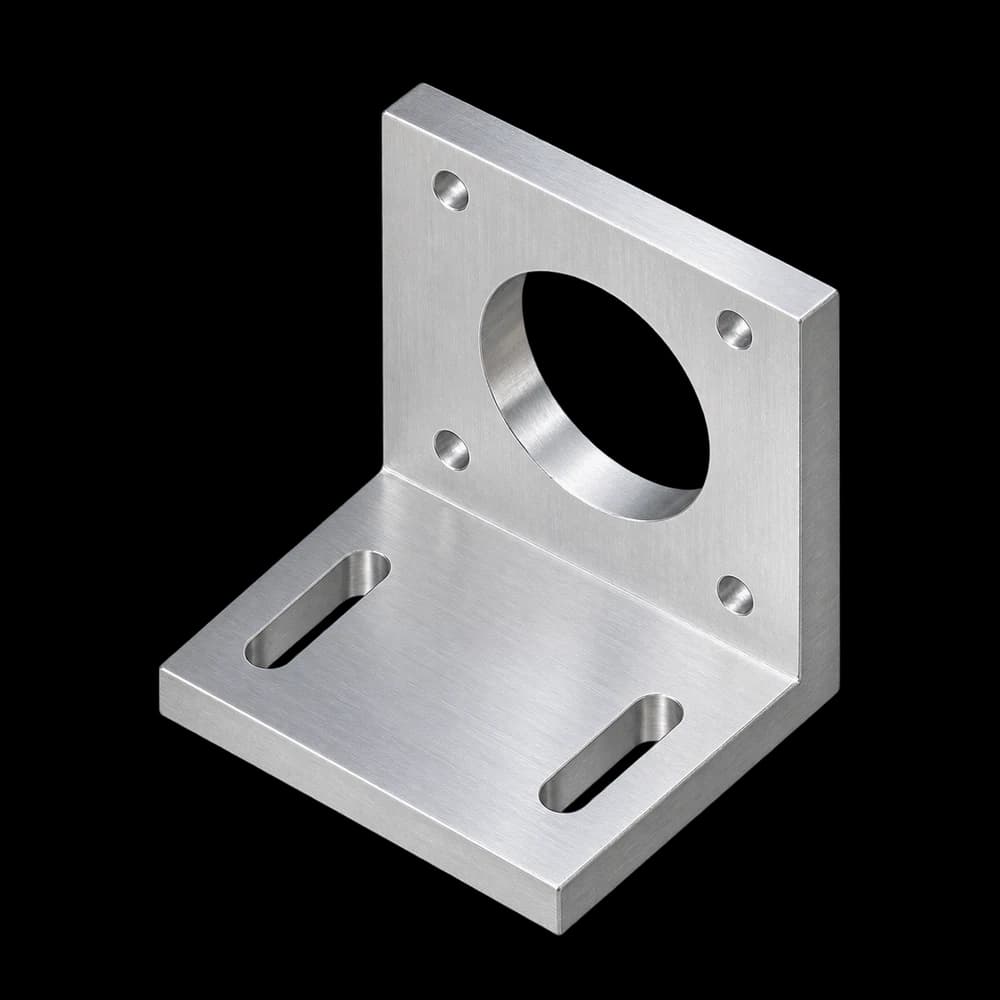

NEMA 23 Motor Mount
6061-T6 Aluminum · Uncoated
- Approx. 70 × 70 × 60 mm
- CNC milling · Angle bracket with adjustment slots
1 pc
$62.00
USD / part
25 pcs
$47.76
USD / part
-22.97%100 pcs
$41.48
USD / part
-33.10%
Reference amounts in USD per part (excluding shipping and tax). Final pricing depends on geometry, tolerances, finishes and material availability.
6061 or 7075?
If your part doesn't carry much load, 6061-T6 is cheaper and anodizes better. If it needs strength, go with 7075-T6. Upload your file and we'll help you decide.
Upload my fileMaterials and finishes
Aluminum alloys we offer
The same ones you choose in the portal when you configure your part.
Alloys
6061-T6 Aluminum
General purpose, excellent machinability, welds and anodizes very well.
7075-T6 Aluminum
High strength, nearly twice 6061. Not weldable.
Why PREMSA
Your aluminum parts, from prototype to production
We help you choose between 6061 and 7075, make parts from 1 piece, and verify every batch before it ships.
From 1 part
No minimum quantity: a prototype or a production run, with quantity pricing in the quote.
Certified material
6061-T6 and 7075-T6 from Monterrey suppliers, with material certificates on request.
Inspection and reports
Dimensional report, FAI, and certificates on request, so your quality team can release without re-measuring.
Shipping to 52 countries
From Monterrey to all of Mexico and 52 countries, with estimated duties before you pay.
To design your part
Aluminum and machining guides
FAQ
About aluminum machining
- Which aluminum alloys do you machine?
- 6061-T6 and 7075-T6, the two alloys available in bar and plate in Monterrey. You choose them in the portal when you configure your part.
- What's the difference between 6061 and 7075?
- 7075-T6 is nearly twice as strong as 6061-T6, but it costs more, isn't welded, and its colored anodize is less even. If your part doesn't carry much load, 6061-T6 is cheaper and anodizes better; if it needs strength or it's a mold or tooling, go with 7075-T6.
- What finishes can you apply to aluminum?
- Type II anodizing in clear, black, gold, red, blue, violet, turquoise, and olive drab; Type III hard anodizing; chemical conversion (trivalent or chrome-free); bead blasting; brushing; powder coating; and nickel plating. It can also go as machined, with no finish.
- Does anodizing change the dimensions?
- Yes, slightly: anodizing builds up from the surface, and Type III builds up more. On tight dimensions, fit holes, and threads it's accounted for in the design or those areas are masked so they aren't anodized.
- What tolerances can you hold in aluminum?
- By default, ISO 2768-m general tolerances apply. On the dimensions you specify on your drawing we can hold ±0.025 mm, and critical dimensions are verified at inspection.
- Can I order a single part?
- Yes. There's no minimum quantity: you quote from 1 part, and the quote shows how the price per part drops with more quantity.
- Do you provide a material certificate?
- Yes, on request. When you configure your part, mark that you need a material certificate and traceability, and it ships with your order.
CNC machining of 6061 and 7075 aluminum
Aluminum is the most machined metal: it weighs a third of steel, doesn't rust like it, conducts heat well, and cuts fast, so an aluminum part usually costs less than the same part in steel or stainless. That's why it's used for brackets, housings, base plates, fixtures, prototype molds, and automation parts.
6061-T6 is the general-purpose alloy: good strength, excellent machinability, and it welds and anodizes very well. It's the default choice when the drawing doesn't call for something else. 7075-T6 is the high-strength alloy: nearly twice as strong as 6061, which is why it's used in molds, tooling, heavily loaded parts, and aerospace; it costs more, isn't welded, and its anodize color comes out less uniform.

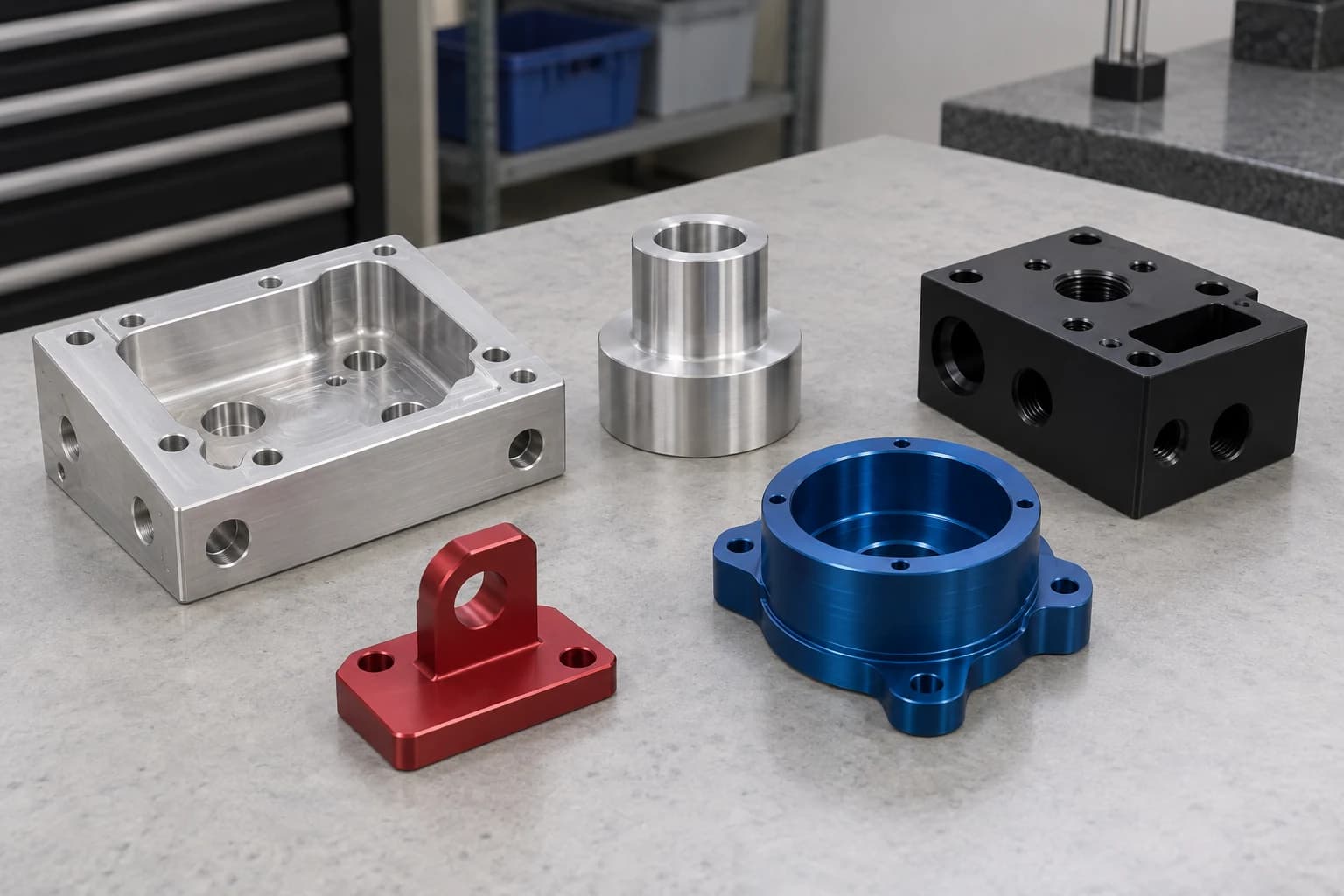

Anodizing is aluminum's natural finish: an oxide layer that protects against corrosion and wear. Type II can be dyed (clear, black, red, blue, gold…) and Type III (hard) is thicker and more wear-resistant. Note: anodizing adds material, so tight dimensions and threads are accounted for from the design stage.
To order, upload your STEP or PDF drawing to the portal, choose 6061-T6 or 7075-T6, the finish, and the quantity, and order from 1 part.
Engineering tools
To choose alloy, finish, and tolerances
Free datasheets and charts before you quote.
- Datasheet
6061-T6 aluminum datasheet
Mechanical properties, machinability, and uses.
View resource - Datasheet
7075-T6 aluminum datasheet
Mechanical properties, machinability, and uses.
View resource - Chart
ISO 2768 tolerance chart
The general tolerances that apply when the drawing doesn't specify another.
View chart
Got a part in mind?
Upload it and we’ll make it real. One part or a thousand.
