303 stainless steel is a free-machining austenitic stainless alloy optimized for high-speed CNC machining, especially for turned parts, fittings, and threaded components. It offers improved machinability over 304 while maintaining good corrosion resistance.
Material Overview
What is Stainless Steel 303?
Stainless Steel 303 is a free-machining version of 18-8 austenitic stainless steel, modified with sulfur to improve chip breaking and machining performance. Compared to Stainless Steel 304, it offers significantly better machinability, making it ideal for CNC turning, Swiss-type machining, and high-volume CNC machining. While it retains good corrosion resistance, it is slightly reduced compared to 304, and weldability is limited due to sulfur content.
Specifications
Stainless Steel 303 Specifications
Engineering-grade properties of 303 stainless steel, including mechanical, physical, and machining characteristics relevant to precision machined components. This data supports material selection for threaded, turned, and tight-tolerance parts.
303 Stainless Steel Engineering Properties
Alloy Type
Austenitic Stainless Steel (18-8 with sulfur addition)
Primary Characteristics
Excellent machinability, good corrosion resistance, non-magnetic in annealed condition, reliable surface finish
Tensile Strength (Ultimate)
85 ksi (586 MPa)
Tensile Strength (Yield)
35 ksi (241 MPa)
Elongation at Break
50%
Hardness
Brinell 160 HB (max, annealed)
Density
8.03 g/cm³ (0.290 lb/in³)
Elastic Modulus
28,000 ksi (193 GPa)
Poisson’s Ratio
0.29
Thermal Conductivity
16.3 W/m·K
Coefficient of Thermal Expansion
17.3 µm/m·°C
Melting Range
1400–1450 °C (2550–2640 °F)
Machinability
Excellent (significantly better than 304 due to sulfur content)
Formability
Moderate (lower than 304)
Weldability
Poor (not recommended due to sulfur content)
Corrosion Resistance
Good (lower than 304, not ideal for harsh or marine environments)
Standardized comparison across key engineering and manufacturing criteria.
Strength
Weight
Machinability
Formability
Weldability
Corrosion Resistance
Thermal Resistance
Cost Efficiency
Ready to machine 303 stainless steel parts?
Upload your CAD files and get a fast, engineering-reviewed quote. From prototypes to production machining, we support precision stainless components with reliable lead times.
Where Stainless Steel 303 is Commonly Used
303 stainless steel is widely used in applications where machining efficiency, thread quality, and dimensional precision are critical. It is especially suited for high-volume machined components rather than welded structures.

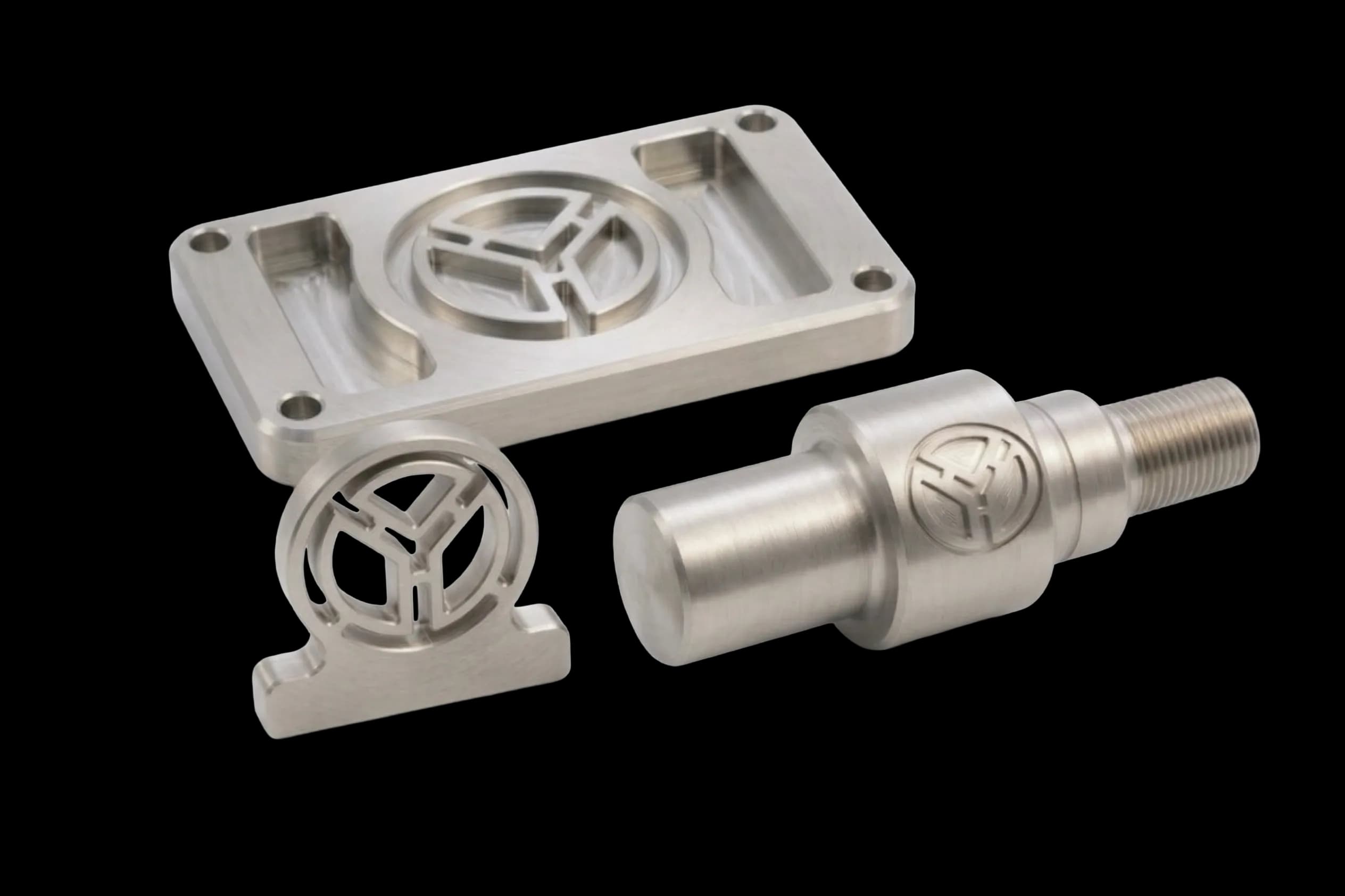

Precision CNC machined parts
Turned components and shafts
Threaded fasteners and fittings
Valve components and stems
Bushings and spacers
Instrumentation and sensor components
Automotive machined hardware
Industrial equipment parts
Non-welded stainless assemblies
Material FAQs
Stainless Steel 303 in CNC Machining Applications
Key considerations for engineering and sourcing teams working with 303 stainless steel in precision machining and production environments.
Ready for your Project
The Benchmark for Free-Machining Steel
Stainless Steel 303: High-Speed Precision and Excellent Galling Resistance
Stainless Steel 303 is the most readily machinable of all austenitic grades of stainless steel. Engineered with added sulfur, it is specifically designed to provide high-speed chip breaking and reduced tool friction, making it the premier choice for high-volume production of complex parts.
At PREMSA Industries, we leverage SS 303 to bridge the gap between high-performance corrosion resistance and manufacturing efficiency. It is the industrial standard for CNC machining when projects require the 'stainless' advantage without the extreme cycle times associated with harder-to-cut grades.
Key manufacturing characteristics of SS 303
Superior Machinability: Sulfur additions act as internal chip breakers, allowing for higher feed rates and significantly longer tool life compared to 304 or 316.
Excellent Galling Resistance: The material naturally resists 'seizing' or welding to itself, which is critical for threaded components and moving assemblies.
Non-Magnetic Properties: As an austenitic grade, it is non-magnetic in the annealed condition, ideal for sensitive electronic and medical housing applications.
Standard Corrosion Resistance: Offers reliable protection against atmospheric oxidation, food products, and many organic chemicals.
High Dimensional Stability: Maintains precise tolerances during high-speed CNC turning, ensuring repeatability across thousands of units.
Good Finishing Response: Can be passivated, electropolished, or bead-blasted to achieve a high-end, professional aesthetic.
Mechanical and physical properties of Stainless 303
SS 303 is selected when production throughput is the priority. While it maintains the classic 'stainless' look and feel, it is generally selected over Stainless Steel 316 or Stainless Steel 304 when the design features intricate threads, deep holes, or complex internal geometries.
Typical performance profile
Moderate tensile and yield strength suitable for structural fasteners
Retains toughness at low temperatures
Lower thermal conductivity than carbon steel, requiring effective coolant management
Non-hardenable by heat treatment (strengthened only by cold work)
Resistant to scaling at temperatures up to 760°C (1400°F)
Why engineers choose it
Lowest machining cost per part in the stainless steel category
Eliminates 'bird-nesting' chips that can damage delicate parts or tools
Ideal for high-tolerance shafts, bushings, and manifold blocks
Proven reliability in medical, aerospace, and high-end consumer sectors
Strengths and advantages of SS 303
Maximized Production Speed: Supports significantly faster cycle times than any other 300-series stainless steel.
Reduced Post-Processing: Excellent surface finish 'out of the machine' often reduces the need for secondary polishing.
Thread Integrity: The free-machining nature ensures clean, burr-free threads even in small-scale fasteners.
Excellent for Automated Machining: Perfectly suited for Swiss-type machining of long, thin components.
Good Cosmetic Appeal: Maintains its silver-white luster over time without the risk of heavy rust seen in carbon steels.
Economic Efficiency: Reduced labor and machine time often offset the higher material cost compared to standard steels.
Trade-offs and limitations of Stainless 303
Reduced Weldability: The sulfur that aids machining can cause 'hot cracking' during welding; not recommended for high-stress structural welds.
Lower Corrosion Resistance than 304: Sulfur slightly lowers the alloy's resistance to pitting in chloride-heavy or marine environments.
Anisotropic Properties: Mechanical properties can vary slightly between the longitudinal and transverse directions due to sulfur inclusions.
Not for Cold Heading: More prone to cracking during severe cold-forming or flaring compared to Stainless Steel 304.
Surface Pitting Risk: Not ideal for prolonged exposure to salt spray or highly acidic industrial cleaners.
Fabrication and machining considerations for SS 303
Machining behavior
SS 303 is a dream for machinists compared to other stainless grades. It allows for aggressive depths of cut while maintaining a high-quality CNC milling finish.
Lower cutting forces lead to reduced heat generation and better tool life
Works well with standard carbide tooling without specialized coatings
Allows for high-precision drilling of deep internal oil or fluid channels
Joining and Finishing
Joining is best handled via mechanical fasteners or brazing rather than traditional welding. Finishing is highly effective for both functional and decorative purposes.
Passivation is highly recommended to maximize corrosion resistance by removing surface impurities
Electropolishing provides an ultra-hygienic surface for medical or food-processing parts
Accepts laser marking with high contrast and clarity
Design Validation
For complex stainless assemblies, we recommend Prototype 3D Printing to verify fit before committing to large SS 303 production runs.
Verify thread engagement and mechanical clearances with SLS prototypes
Rapid transition from digital design to certified steel hardware
Common applications for Stainless Steel 303
SS 303 is the 'go-to' material for high-precision, corrosion-resistant CNC machined components.
Aircraft fittings, gears, and structural bolts
Medical instrument handles and specialized surgical hardware
Electrical switchgear components and connector bodies
Valve bodies, stems, and internal pump components
High-end kitchen hardware and architectural fasteners
Shafts, bushings, and bearings for automation equipment
Automotive sensors and fluid handling connectors
Precision screws, nuts, and manifold blocks
When Stainless Steel 303 is the right material choice
Select SS 303 when your project requires the premium look and corrosion resistance of stainless steel, but your budget requires high-volume production efficiency.
When machining complexity (deep holes, small threads) makes grade 304/316 too costly
When parts will be used in moving assemblies where galling resistance is critical
When a non-magnetic structural material is required for electronics or medical use
When atmospheric corrosion resistance is needed for long-term service life
When transitioning from a prototype to a high-volume production run where cycle time is the key cost driver
