Material GuidePTFE (Teflon): Properties, Machining, and Applications
PTFE (polytetrafluoroethylene), commonly known as Teflon, is a high-performance fluoropolymer known for its extremely low friction, outstanding chemical resistance, and wide operating temperature range. It is primarily processed through CNC machining services and sheet cutting, rather than conventional molding for precision components.
In practice, PTFE is often selected when applications require near-zero friction, aggressive chemical resistance, or non-stick performance, especially in environments where most other plastics and even metals would fail.
Key manufacturing characteristics of PTFE
- Ultra-low friction coefficient: One of the lowest friction materials available for engineering applications.
- Exceptional chemical resistance: Resistant to almost all chemicals, including acids, solvents, and corrosive fluids.
- Non-stick surface behavior: Extremely low surface energy prevents adhesion.
- Wide temperature range: Performs across very low and high temperatures.
- Soft and deformable material: Requires careful handling during CNC machining services.
- Machining-driven material: Typically processed via machining rather than high-precision molding.
Mechanical and physical properties of PTFE
PTFE is typically selected for chemical and tribological performance rather than mechanical strength. Compared to PEEK or acetal, PTFE offers far superior chemical resistance and lower friction, but significantly lower strength and stiffness.
Typical performance profile
- Extremely low coefficient of friction
- Very high chemical resistance across most environments
- Low mechanical strength and stiffness
- High creep under sustained load
- Stable performance across extreme temperatures
Why engineers choose it
- Enables non-stick and low-friction system performance
- Performs in aggressive chemical environments
- Suitable for seals, liners, and fluid-handling components
- Provides unique properties not matched by most other materials
Strengths and advantages of PTFE
- Near-zero friction: Ideal for bearings, seals, and sliding components.
- Outstanding chemical resistance: Performs in environments where most materials degrade.
- Wide temperature capability: Suitable for both cryogenic and elevated temperature conditions.
- Non-stick behavior: Prevents buildup, fouling, or material adhesion.
- Electrical insulation properties: Excellent dielectric performance.
- Stable in harsh environments: Performs reliably in demanding industrial conditions.
Trade-offs and limitations of PTFE
- Low mechanical strength: Not suitable for load-bearing structural applications.
- High creep: Deforms significantly under long-term load.
- Poor dimensional stability under stress: Not ideal for tight tolerance precision parts.
- Difficult to bond: Extremely low surface energy makes adhesive bonding nearly impossible.
- Soft material behavior: Can deform during machining and assembly.
- Higher cost than commodity plastics: More expensive than materials like HDPE or polypropylene.

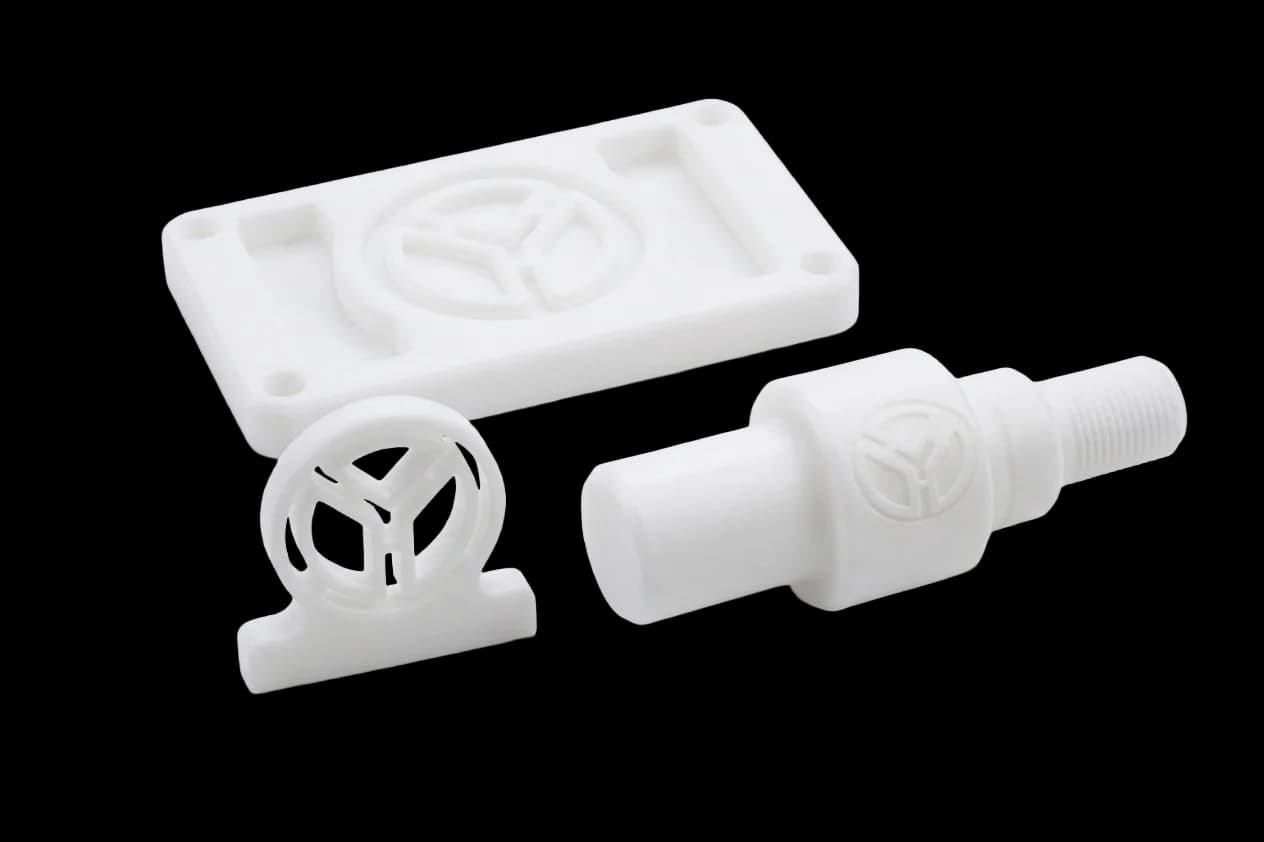

Fabrication and machining considerations for PTFE
Machining behavior
PTFE is commonly processed using CNC milling and CNC turning, but its softness and flexibility require careful process control.
- Material can deform under clamping pressure
- Sharp tooling is critical for clean cuts
- Dimensional accuracy can be affected by material relaxation
Dimensional stability and creep
- Parts may deform under sustained load over time
- Design must account for creep and compression set
- Not suitable for tight-tolerance load-bearing applications
Sealing and fluid applications
- Excellent for gaskets, seals, and valve components
- Performs well in aggressive chemical systems
- Often used in fluid handling and process industries
Joining and assembly
- Typically assembled using mechanical retention
- Adhesive bonding is generally not feasible
- Designs must account for material deformation
Common applications for PTFE
PTFE is widely used in industries requiring chemical resistance, low friction, and high-performance sealing.
- Seals and gaskets
- Bearings and sliding components
- Chemical processing equipment
- Valve seats and fluid system components
- Electrical insulation components
- Non-stick surfaces and liners
- Semiconductor and cleanroom components
When PTFE is a strong material choice
PTFE is often the right choice when chemical resistance, low friction, and temperature stability are critical, and mechanical strength is not the primary requirement.
- When near-zero friction is required
- When parts are exposed to aggressive chemicals
- When non-stick behavior is critical
- When operating across extreme temperatures
- When sealing performance is more important than structural strength
