Composite Material

Fiberglass (FRP) forLightweight Structural Components

Fiberglass (FRP / GFRP) is a composite material combining glass fibers and resin, offering high strength, corrosion resistance, and dimensional stability for industrial applications.

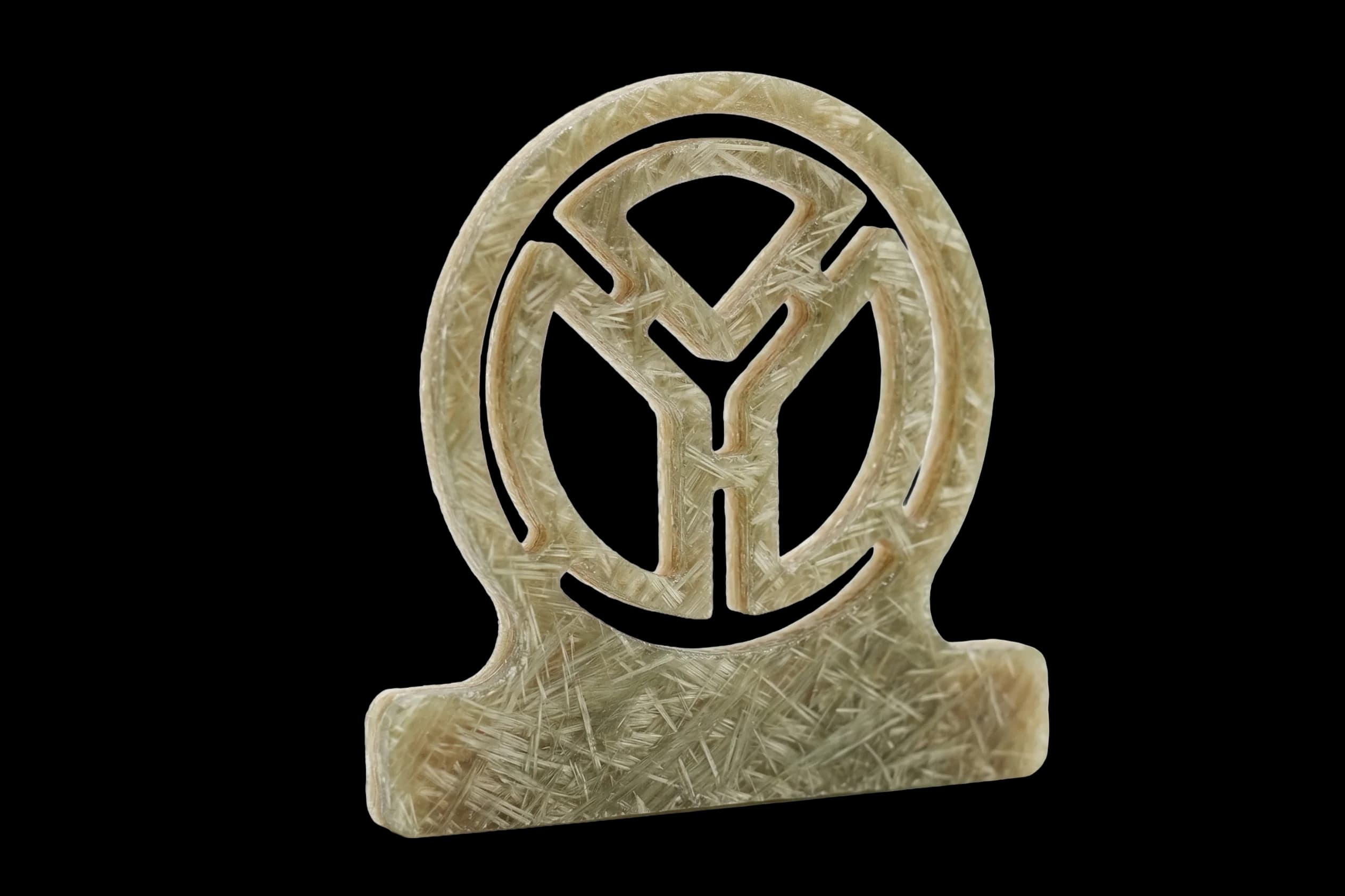

Fiberglass composite panels and machined structural components
Material Overview

What is Fiberglass (FRP)?

Fiberglass (FRP, Fiber-Reinforced Polymer) is a composite material made from glass fibers embedded in a polymer resin matrix, providing a strong, lightweight, and corrosion-resistant structure. It is widely used in sheet cutting for panels and structural laminates, and can be processed through CNC machining and CNC milling for custom components, drilling, and profiling. Fiberglass is commonly selected for industrial applications where metal corrosion, weight reduction, and environmental durability are key concerns, including enclosures, panels, and structural composite parts.

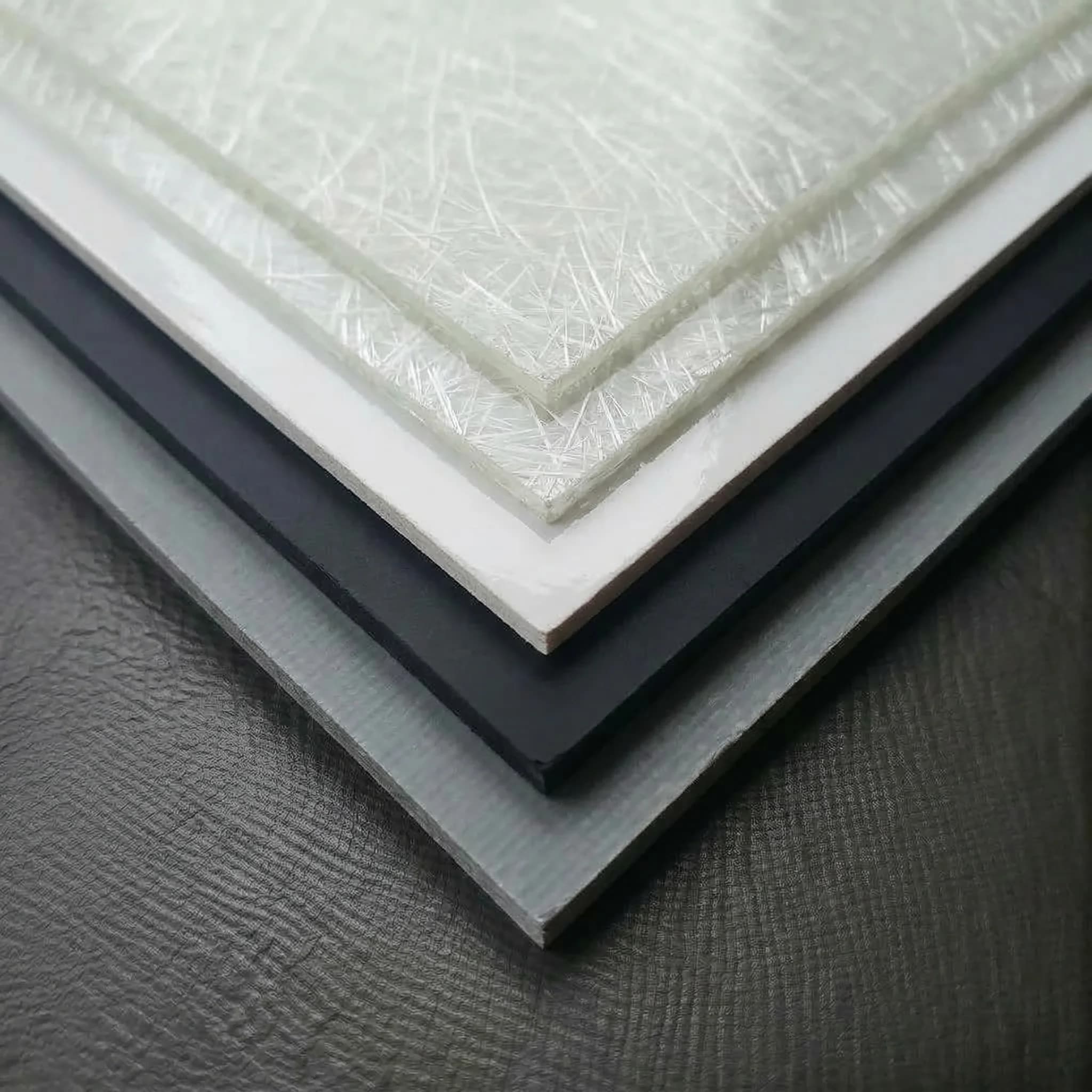

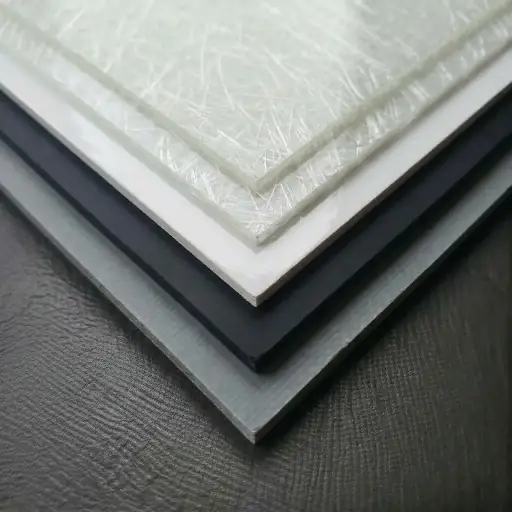

Fiberglass panels and CNC machined composite components
Specifications

Fiberglass (FRP) Specifications

Engineering-grade properties of fiberglass composites, including mechanical, thermal, and environmental characteristics relevant to structural and corrosion-resistant applications. Properties vary depending on fiber orientation, resin system, and manufacturing process.

Fiberglass (FRP) Engineering Properties

Material Type

Fiber-reinforced polymer (glass fiber + resin matrix)

Common Types

Polyester FRP, Vinyl Ester FRP, Epoxy-based composites

Primary Characteristics

High strength-to-weight ratio, corrosion-resistant, lightweight, electrically insulating

Tensile Strength

10,000–40,000 psi (varies by layup and resin)

Flexural Strength

20,000–60,000 psi

Compressive Strength

15,000–40,000 psi

Density

1.5–2.0 g/cm³

Elastic Modulus

1.5–3.0 Msi (10–20 GPa)

Corrosion Resistance

Excellent (resistant to moisture, chemicals, and outdoor exposure)

Electrical Insulation

Excellent

Temperature Resistance

Moderate to high (depends on resin system)

Machinability

Good (abrasive to tools due to glass fibers)

Moisture Resistance

Excellent

Fire Resistance

Available in flame-retardant grades

Common Forms

Sheets, panels, laminates, molded parts

Typical Applications

Panels, enclosures, structural supports, electrical components, industrial housings

Performance

Material Performance Overview

Standardized comparison across key structural and material criteria.

Strength

Weight

Machinability

Corrosion Resistance

Electrical Insulation

Thermal Resistance

Dimensional Stability

Cost Efficiency

Ready to produce fiberglass (FRP) components?

Upload your CAD files and get a fast, engineering-reviewed quote. From prototypes to production, we help you move faster.

Where Fiberglass (FRP) is Commonly Used

Fiberglass is widely used in applications that require strength, corrosion resistance, and lightweight performance. It is especially common in industrial, electrical, and outdoor environments.

Industrial panels and structural components

Electrical enclosures and insulation systems

Corrosion-resistant equipment and housings

Outdoor and marine applications

Machine guards and protective covers

Infrastructure and construction components

Composite structural supports

Chemical processing equipment

Custom fabricated composite parts

Material FAQs

Fiberglass (FRP / GFRP) FAQs for Manufacturing and Industrial Applications

Common questions from engineering, sourcing, and product development teams working with fiberglass across composite fabrication, structural components, and corrosion-resistant environments.

Ready for your Project

Material Guide

Fiberglass (FRP / GFRP): Properties, Fabrication, and Applications

Fiberglass (fiber-reinforced plastic, FRP or GFRP) is a composite material made of glass fibers embedded in a polymer matrix, typically polyester, vinyl ester, or epoxy resin. It is widely used in applications requiring high strength-to-weight ratio, corrosion resistance, and electrical insulation. Fiberglass components are commonly produced through plastic part production, as well as sheet cutting and limited CNC machining services for secondary operations.

For engineering and sourcing teams, fiberglass is often selected when a project requires structural performance with reduced weight, especially in environments where corrosion resistance and long-term durability are critical.

Key manufacturing characteristics of fiberglass

  • Composite structure: Reinforced with glass fibers for increased strength and stiffness.
  • High strength-to-weight ratio: Stronger than many plastics while remaining lightweight.
  • Excellent corrosion resistance: Performs well in harsh chemical and outdoor environments.
  • Electrical insulation: Non-conductive material suitable for electrical applications.
  • Custom fabrication processes: Produced through molding, layup, pultrusion, and other composite methods.
  • Secondary machining capability: Can be processed through CNC machining services for trimming and finishing.

Mechanical and physical properties of fiberglass

Fiberglass is typically selected for structural performance and environmental resistance. Compared to thermoplastics like polycarbonate or PVC, it offers significantly higher strength and stiffness. Compared to metals, it provides lower weight and superior corrosion resistance, but less ductility.

Typical performance profile

  • High strength and stiffness relative to weight
  • Excellent corrosion and chemical resistance
  • Good fatigue resistance in structural applications
  • Non-conductive and electrically insulating
  • Stable performance in outdoor and harsh environments

Why engineers choose it

  • Reduces weight compared to metal structures
  • Performs well in corrosive environments
  • Provides electrical insulation in structural components
  • Suitable for custom-molded structural parts

Strengths and advantages of fiberglass

  1. High strength-to-weight ratio: Ideal for lightweight structural components.
  2. Corrosion resistance: Performs in environments where metals degrade.
  3. Electrical insulation: Suitable for electrical and electronic systems.
  4. Design flexibility: Can be molded into complex shapes.
  5. Durability: Resistant to weathering and environmental exposure.
  6. Low maintenance: Long service life in industrial environments.

Trade-offs and limitations of fiberglass

  1. Brittle behavior: Less impact-resistant than some thermoplastics.
  2. Complex manufacturing: Requires specialized processes compared to standard plastics.
  3. Machining challenges: Abrasive fibers increase tool wear during CNC machining services.
  4. Repair complexity: More difficult to repair than metals or simple plastics.
  5. Higher cost than commodity plastics: More expensive than materials like HDPE or polypropylene.

Fabrication and machining considerations for fiberglass

Primary fabrication methods

Fiberglass is typically produced through composite manufacturing processes rather than traditional machining.

  • Hand layup and spray-up for large structures
  • Pultrusion for continuous profiles
  • Compression and resin transfer molding for repeat production

Machining and finishing

Secondary operations may involve CNC milling or cutting processes for trimming and finishing.

  • Abrasive fibers increase tool wear
  • Dust control is critical during machining
  • Precision is achievable with proper tooling

Sheet and panel processing

Fiberglass panels can be processed through sheet cutting for flat structural components.

  • Common in panels, covers, and enclosures
  • Waterjet and CNC routing are frequently used
  • Minimal finishing required for structural parts

Assembly and integration

  • Typically assembled using adhesives or mechanical fasteners
  • Compatible with hybrid metal-composite assemblies
  • Design must account for anisotropic properties

Common applications for fiberglass

Fiberglass is widely used in industries requiring lightweight, corrosion-resistant structural components.

  • Structural panels and enclosures
  • Electrical insulation components
  • Marine and outdoor structures
  • Industrial tanks and piping
  • Automotive and transportation components
  • Architectural and construction elements
  • Composite housings and covers

When fiberglass is a strong material choice

Fiberglass is often the right choice when strength, weight reduction, and environmental resistance are more important than ductility or ease of machining.

  • When corrosion resistance is critical
  • When reducing weight compared to metal structures
  • When electrical insulation is required
  • When working in outdoor or harsh environments
  • When custom composite structures are needed
